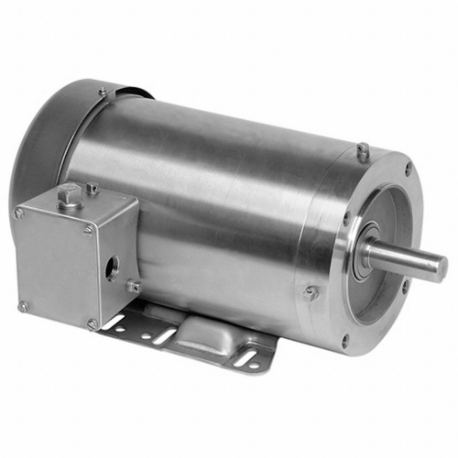

| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 6 1/2" |
| Cc Number | CC030A |
| Drain Plug | Removable Drain Plugs |
| Drain Plugs | Removable Drain Plugs |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Full Load Amps | 4.3-4.1/2.1A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 11 1/8" |
| Motor Application | Washdown |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Garage/Gate Opener |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 13 3/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Frame Material | Stainless Steel |
| Product Type | Washdown Motor |
| Standards | CSA (156060), UL (E22922) |
| Weight | 35 lbs. |
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
