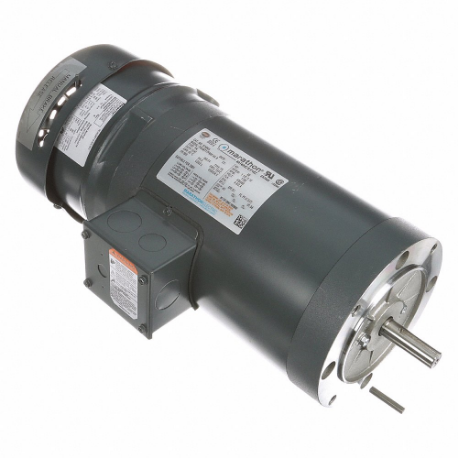

| Item | Brake Motor |
| Application | Brake Motor |
| Bearing Type | Ball |
| Bearings | Ball |
| Break-down Torque | 10 lbs.-ft. |
| Cc Number | CC030A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.5-4.3/2.1A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |
| Length Less Shaft | 15 13/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1800 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Brake Rating | 10 lbs.-ft. |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Weight | 35 lbs. |
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
