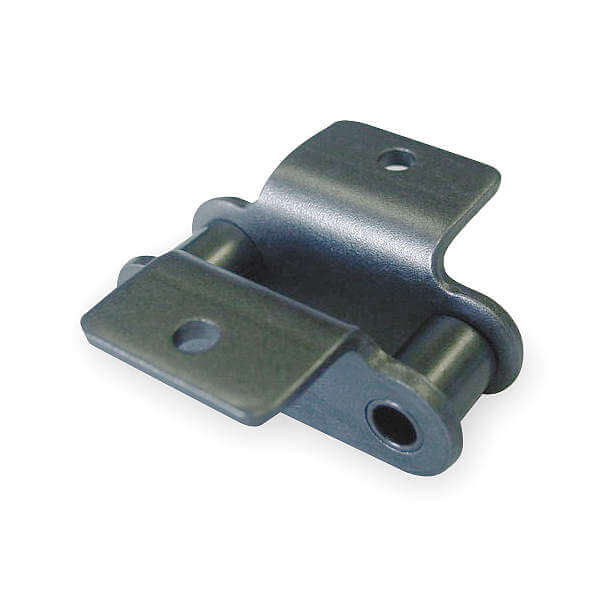

TSUBAKI C2080HK1RL Roller Link Double Pitch

Item: AB4JKE
Model: C2080HK1RL
19 In Stock

Ships within 2 days via

Link Type
£61.5
5.00% off
£58.43/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Chain Size C2080H
Attachment Number K-1
Attachment Type Tab
Centerline To Attachment End 0.823"
Centerline To Hole Center 18/25"
Chain Number C2080H
Chain Overall Width 1.543"
Connecting End To Center Line 0.823"
Display Qty 1
Extended Pin Diameter 0.312"
Finish Plain
For Chain Style (combined) Plain Steel
Link Type Roller Attachment
Lubrication SAE 10 To SAE 50
Material Steel
Max. Allowable Load 2400 lbs.
Maximum Operating Temperature 300°F
Minimum Operating Temperature 15°F
Number Of Tab Holes 1
Outside Pin Dia. 0.312"
Overall Width 1.543"
Pin Contruction Cottered Pin
Pin Length 1.543"
Pin Link Plate Thickness 0.906"
Pin Type Cotter
Pitch 2"
Plate Height 0.906"
Plate Thickness 0.625"
Rivet End To Center Line 18/25"
Roller Dia. 5/8"
Roller Link Plate Height 0.906"
Standard Logo ansi.jpg
Temp. Range +15°F to +300°F
Tensile Strength 15400 lbs.-in.
Width Between Roller Link Plates 5/8"

Product Details

Shipping Information

Height 2.54
Length 5.08
Width 3.92
HS Code 7315190000
Country Of Origin JP
Weight 0.135000
