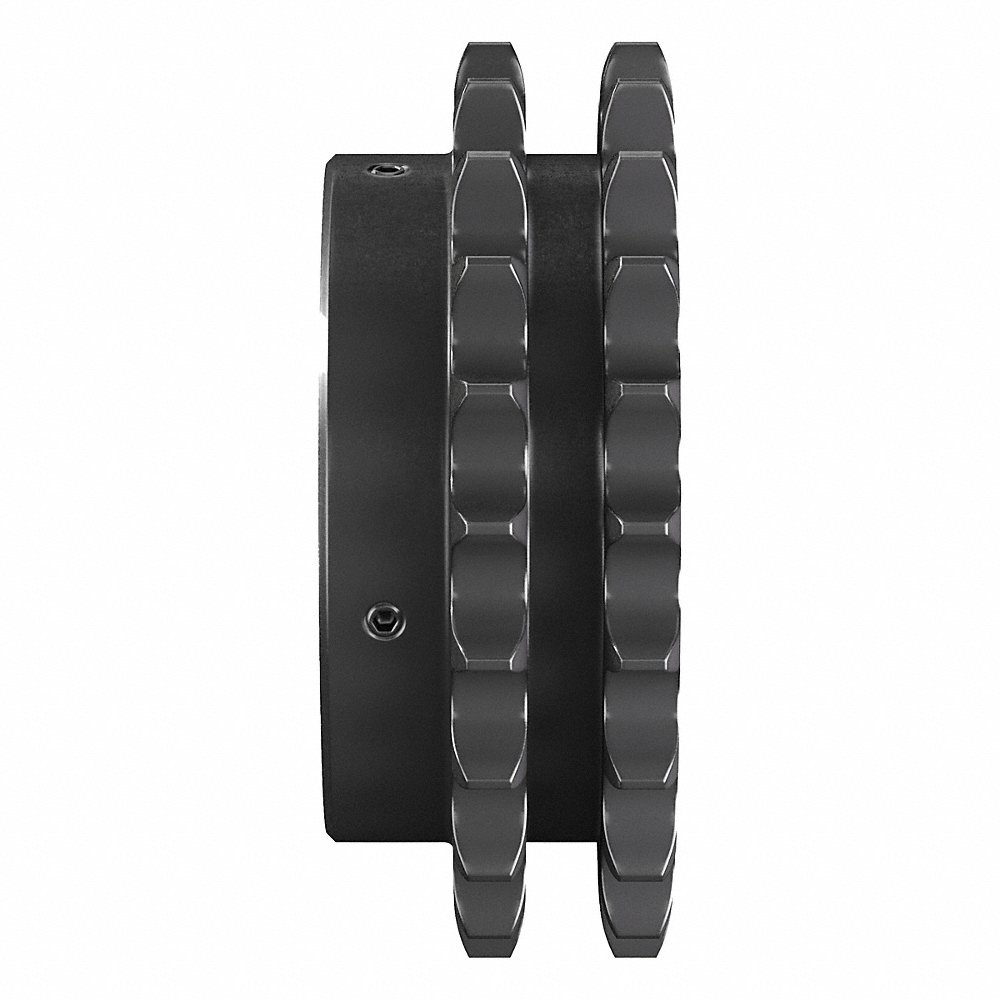

TRITAN D60BS22H X 1 15/16 Roller Chain Sprocket, 1 15/16 Inch Bore Dia, 22 Teeth, Steel
Item: CU6YUA
Model: D60BS22H X 1 15/16
26 In Stock
Ships within 2 days via
1 15/16"
2
5.67"
5.00% off
£273.64/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Dia. | 1.938" |
|---|---|
| Bore Diameter | 1 15/16" |
| Bore Type | Fixed |
| Chain Number | 60 |
| Finish | Black Oxide |
| For Chain Number | 60-2 |
| Hub Diameter | 4 1/4" |
| Includes | Set Screws |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyway | Yes |
|---|---|
| Keyway Width | 1/2" |
| Material | Steel |
| Maximum Bore Dia. | 1 15/16" |
| Number Of Teeth | 22 |
| Outside Dia. | 5.67" |
| Pitch Diameter | 5.27" |
| Set Screw Location | Setscrews Are Placed Over The Keyway And at 90° To The Keyway |
| standard | ANSI B29.1, BIS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.54 |
|---|---|
| length | 14.4 |
| width | 14.4 |
| country of origin | CN |
|---|---|
| weight | 4.356000 |
Related Products
| Style | Model | Number Of Teeth | Outside Dia. | Bore Dia. | For Chain Number | For Chain Pitch | Pitch Dia. | Maximum Bore Dia. | Keyway | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D80BS12H X 1 1/2 | 12 | 4.33" | 1 1/2" | 80-2 | 1" | 3.864" | 1 1/2" | Yes | 186.40 | |
| B | D60BS13H X 1 1/2 | 13 | 3.49" | 1 1/2" | 60-2 | 3/4" | 3.134" | 1 1/2" | Yes | 106.65 | |
| C | D80BS13H X 1 1/2 | 13 | 4.66" | 1 1/2" | 80-2 | 1" | 4.179" | 1 1/2" | Yes | 190.41 | |
| D | D60BS14H X 1 1/2 | 14 | 3.74" | 1 1/2" | - | 3/4" | 3.371" | 1 1/2" | Yes | 119.14 | |
| E | 60BS16H X 1 1/2 | 16 | 4.22" | 1 1/2" | 60.0 | 3/4" | 3.845" | 1 1/2" | Yes | 66.93 | |
| E | 50BS17H X 1 1/2 | 17 | 3 18/25" | 1 1/2" | 50.0 | 5/8" | 3.401" | 1 1/2" | Yes | 40.64 | |
| E | 80BS17H X 1 1/2 | 17 | 5.95" | 1 1/2" | 80.0 | 1" | - | 1 1/2" | Yes | 159.60 |
