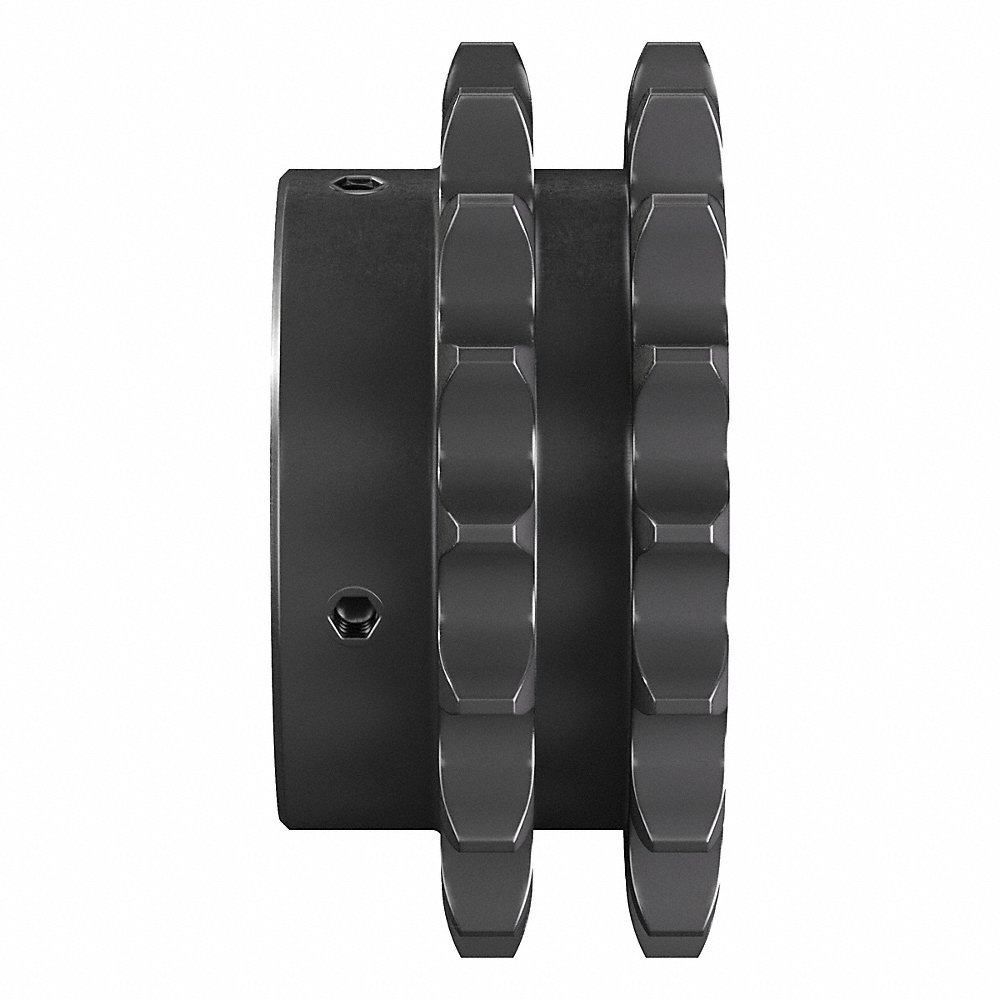

TRITAN D60BS17H X 1 7/16 Roller Chain Sprocket, 1 7/16 Inch Bore Dia, 17 Teeth, Steel

Item: CU6YXB
Model: D60BS17H X 1 7/16
21 In Stock

Ships within 2 days via

£191.52
5.00% off
£181.94/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Dia. 1.438"
Bore Diameter 1 7/16"
Bore Type Fixed
Chain Number 60
Finish Black Oxide
For Chain Number 60-2
For Chain Pitch 3/4"
For Number Of Strands 2
Hub Dia. 3 1/4"
Hub Diameter 3 1/4"
Hub Type One Side
Includes Set Screws
Item - Roller Chain Sprockets Roller Chain Sprocket
Keyway Yes
Keyway Width 3/8"
Length Through Bore 2 1/8"
Material Steel
Maximum Bore Dia. 1 7/16"
Number Of Teeth 17
Outside Dia. 4.46"
Pitch Dia. 4.082"
Set Screw Location Setscrews Are Placed Over The Keyway And at 90° To The Keyway
Set Screw Size 3/8"
Tooth Width 0.444"
standard ANSI B29.1, BIS

Product Details

Shipping Information

height 2.54
length 11.33
width 11.33
country of origin CN
weight 1.890000
