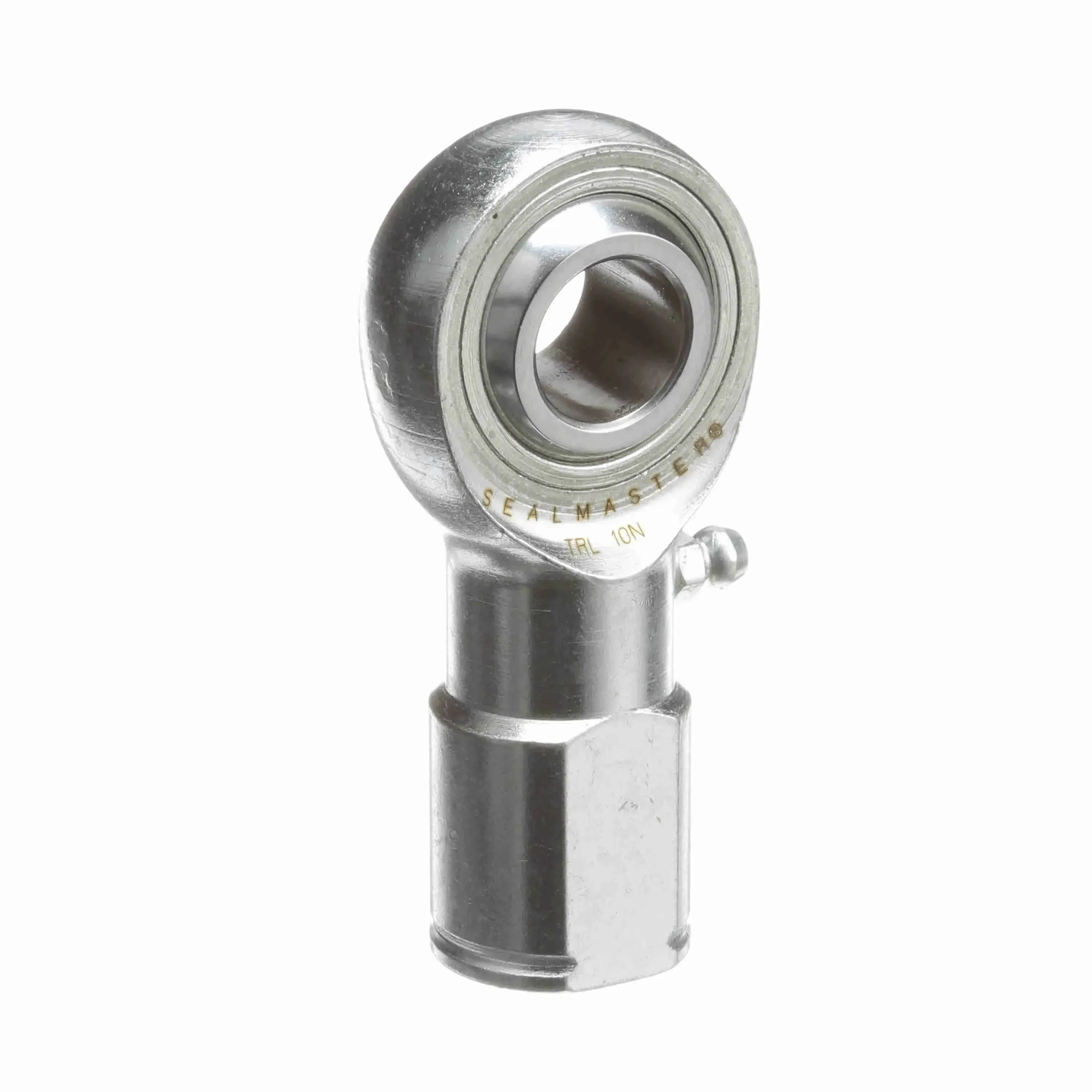

SEALMASTER TRL 10N 1511001000 Rod End Bearing, 5/8 Inch Bore, 0.562 Inch Housing Width, Female, Left Hand
Item: BE7DRK
Model: TRL 10N
In Stock
Get it by Thursday, Apr 16
£59.1/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Across Wrench Flats | 7/8" |
| Axial Load | 805 |
| Ball Diameter | 1 1/8" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.839" |
| Ball Material | Alloy Steel |
| Ball Width | 3/4" |
| Base Diameter | 1" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 5/8" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Diameter | 1 1/2" |
| Housing Style | Female Rod End |
| Housing Width | 0.562" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 2 1/2" |
| Lubrication | Zerk Fitting |
|---|---|
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max Static Radial Load | 8050 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -8° to +8° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | Precision Series |
| Thread Direction | Left Hand |
| Thread Length | 1.469" |
| Thread Size | 5/8"-18 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Product Details
Shipping Information
| Height | 12.7 |
|---|---|
| Length | 13.46 |
| Width | 7.62 |
| Country Of Origin | MX |
|---|---|
| Weight | 0.216000 |
