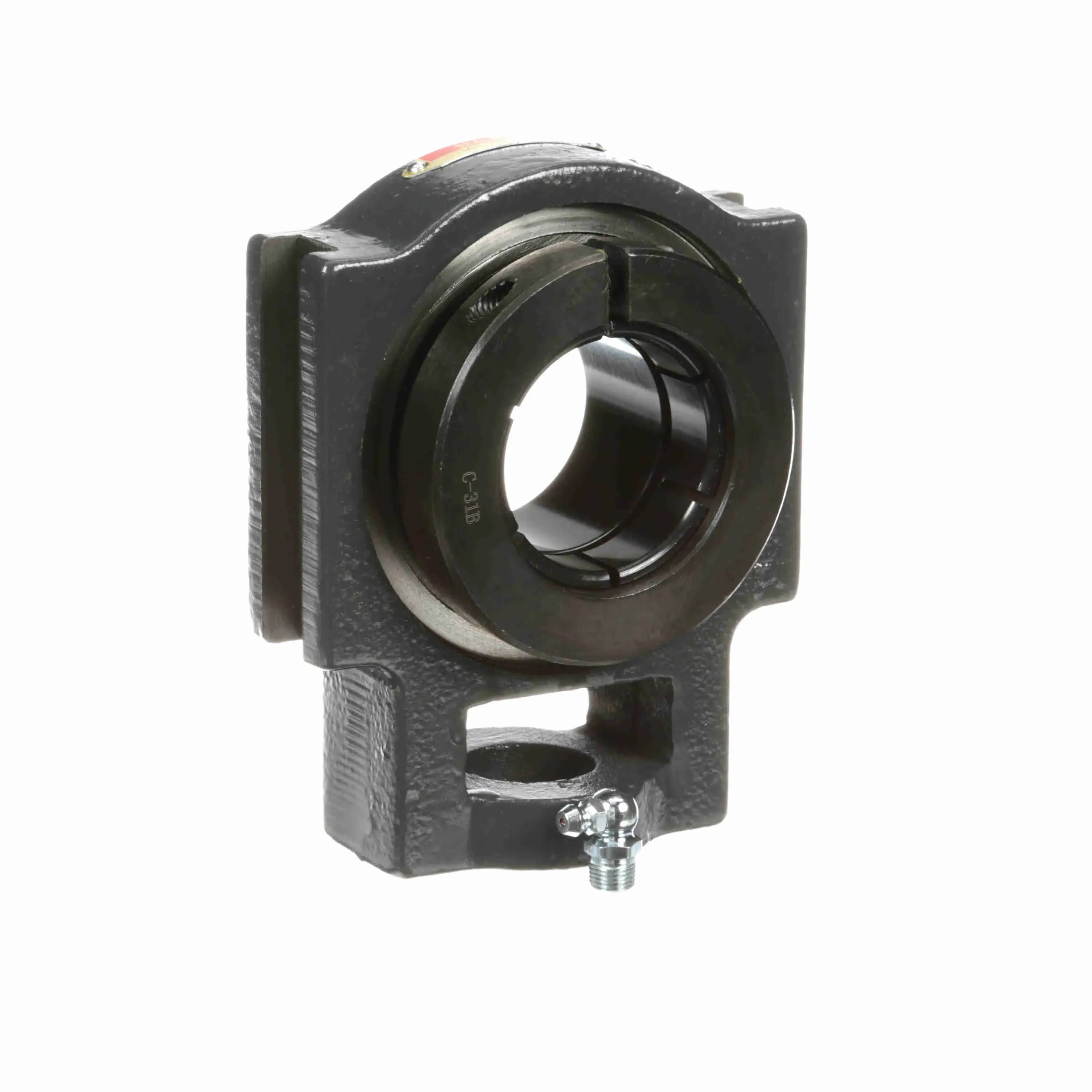

SEALMASTER STMH-31T 716615 Take-Up Ball Bearing Unit, Side Mount, 1.9375 Inch Bore
Item: BE2TZH
Model: STMH-31T
In Stock
Get it by Wednesday, Apr 15
£281.84/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Adjusting Screw Clearance Hole Diameter | 1.13" |
|---|---|
| Adjusting Screw Square Nut Seat Height | 1.94" |
| Base To Center Height | 3.57" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 3/4" |
| Centerline To Outermost Bearing Face | 1.42" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Assembly |
| Housing Type | Take Up Assembly, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | MH-31T |
| Length Through Bore | 2.17" |
|---|---|
| Locking Collar Outside Diameter | 3.35" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4.63" |
| Overall Length | 5 22/25" |
| Overall Width | 2.19" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal With Flinger |
| Series | St Series |
| Shaft Locking Type | Concentric |
| Size Code | 2-115 |
| Slot Length | 3.38" |
| Slot Spacing | 4" |
| Slot Width | 0.688" |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Product Details
Yes
Shipping Information
| height | 5.87 |
|---|---|
| length | 13.18 |
| width | 19.84 |
| country of origin | MX |
|---|---|
| weight | 2.754000 |
Related Products
| Style | Model | Bore Dia. | Overall Height | Overall Length | Overall Width | Max. Speed | Dynamic Load Capacity | Slot Spacing | Bearing Insert Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | STMH-20T | - | - | - | - | - | - | - | - | 267.20 | |
| B | STMH-27T | - | - | - | - | - | - | - | - | 958.67 | |
| A | STMH-20RT | - | - | - | - | - | - | - | - | 199.09 | |
| A | STMH-208T | - | - | - | - | - | - | - | - | 323.83 | |
| A | STMH-24T | - | - | - | - | - | - | - | - | 292.21 | |
| C | STMH-19T | 1 3/16" | 4" | 4 11/25" | 1 3/4" | 4500 RPM | 4381 lbs. | 3 1/2" | Standard Duty | 149.50 |
