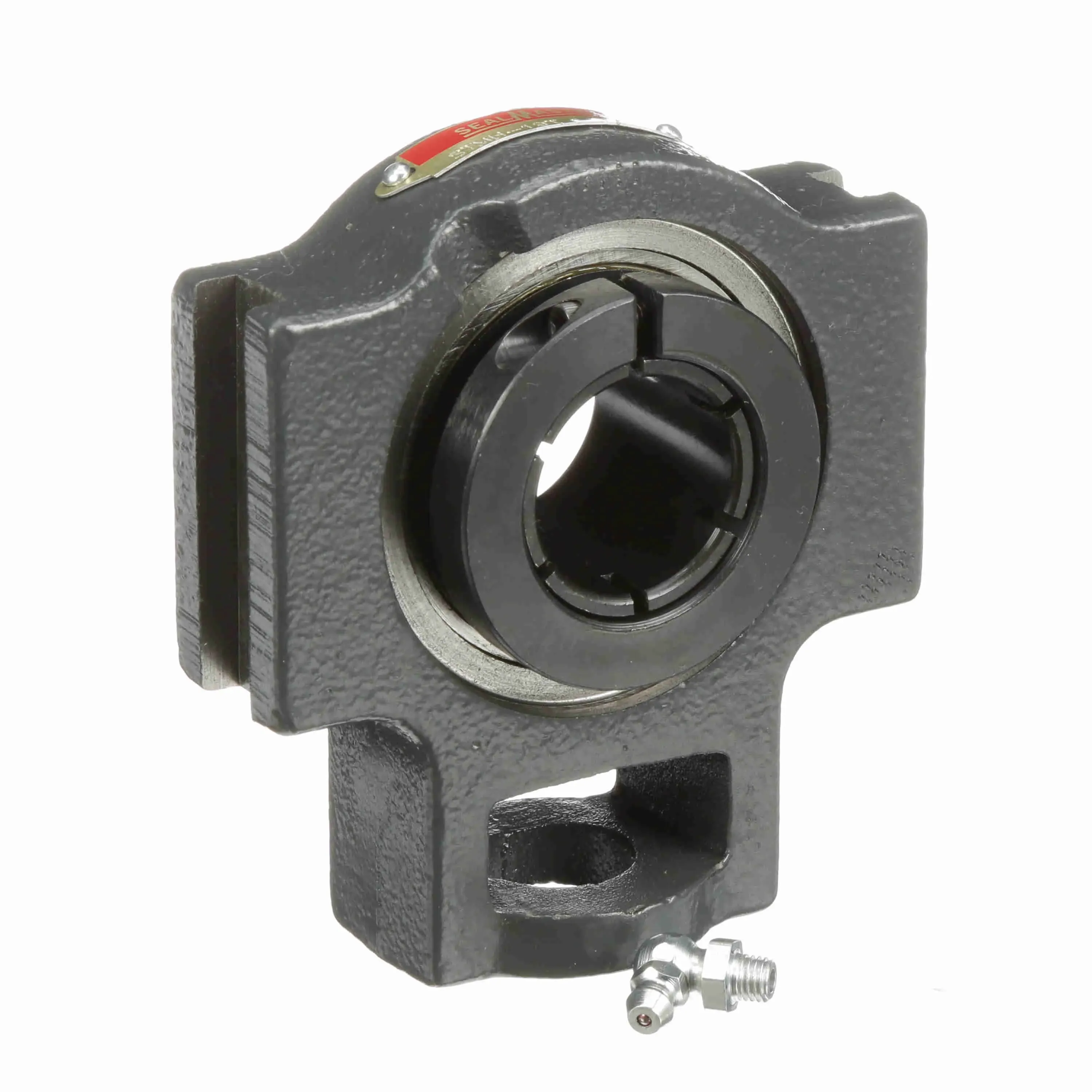

SEALMASTER STMH-19T 716607 Mounted Ball Bearing, Cast Iron, 52100 Bearing Steel, Black Oxide Coated, 1.188 In
Item: BE9MNP
Model: STMH-19T
In Stock
Get it by Wednesday, Apr 15
£179.4/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Adjusting Screw Clearance Hole Diameter | 22/25" |
| Adjusting Screw Square Nut Seat Height | 1 11/25" |
| Base To Center Height | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bore Dia. | 1 3/16" |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 5/8" |
| Centerline To Outermost Bearing Face | 0.94" |
| Dynamic Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Color | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Assembly |
| Housing Type | Take Up Assembly, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.594" |
| Insert | MH1-19T |
| Length Through Bore | 1 14/25" |
|---|---|
| Locking Collar Outside Diameter | 2.19" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4" |
| Overall Length | 4 11/25" |
| Overall Width | 1 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal With Flinger |
| Series | St Series |
| Setscrew Torque | 70 lbs.-in. |
| Shaft Locking Type | Concentric |
| Size Code | 2-13 |
| Slot Length | 2 1/4" |
| Slot Spacing | 3 1/2" |
| Slot Width | 0.531" |
| Static Load Rating | 2567 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0385 cPS |
Product Details
Mounted Ball Bearing
Shipping Information
| height | 11.43 |
|---|---|
| length | 18.03 |
| width | 5.33 |
| country of origin | MX |
|---|---|
| weight | 1.413000 |
