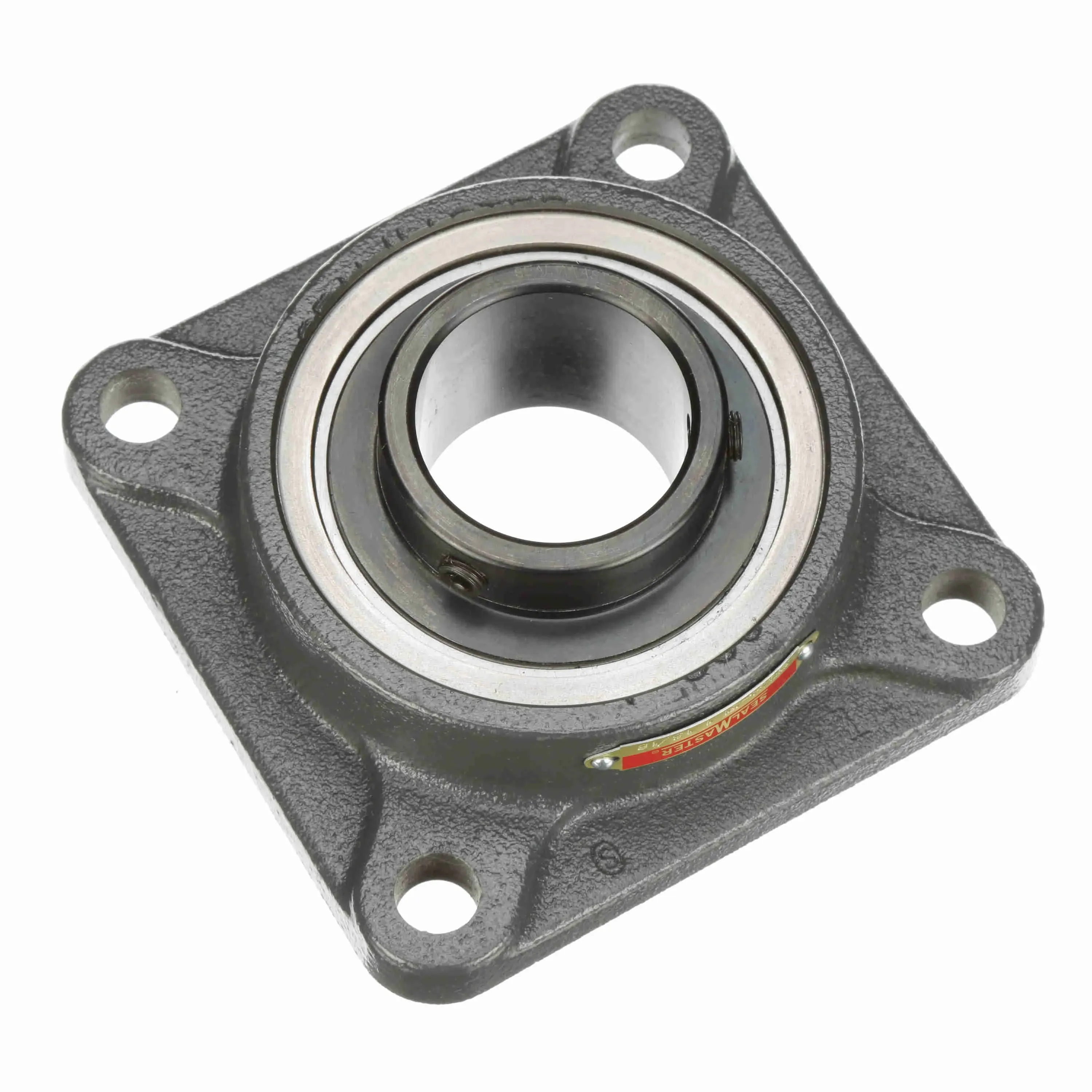

SEALMASTER SFMH-31 711653 Flange-Mount Ball Bearing Unit, 1-15/16 Inch Bore
Item: BE3AGT
Model: SFMH-31
In Stock
Get it by Wednesday, Apr 15
£219.06/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 9/16" |
| Bolt Spacing | 4 3/8" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.58" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Backside Inner Diameter | 4" |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Four Bolt |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | MH-31 |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.154" |
| Overall Height To End Cap | 2.98" |
| Overall Length | 5.63" |
| Overall Width | 5.63" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 210 |
| Static Load Rating | 5216 lbs. |
Product Details
Yes
Shipping Information
| height | 15.09 |
|---|---|
| length | 15.39 |
| width | 5.56 |
| country of origin | MX |
|---|---|
| weight | 2.578500 |
