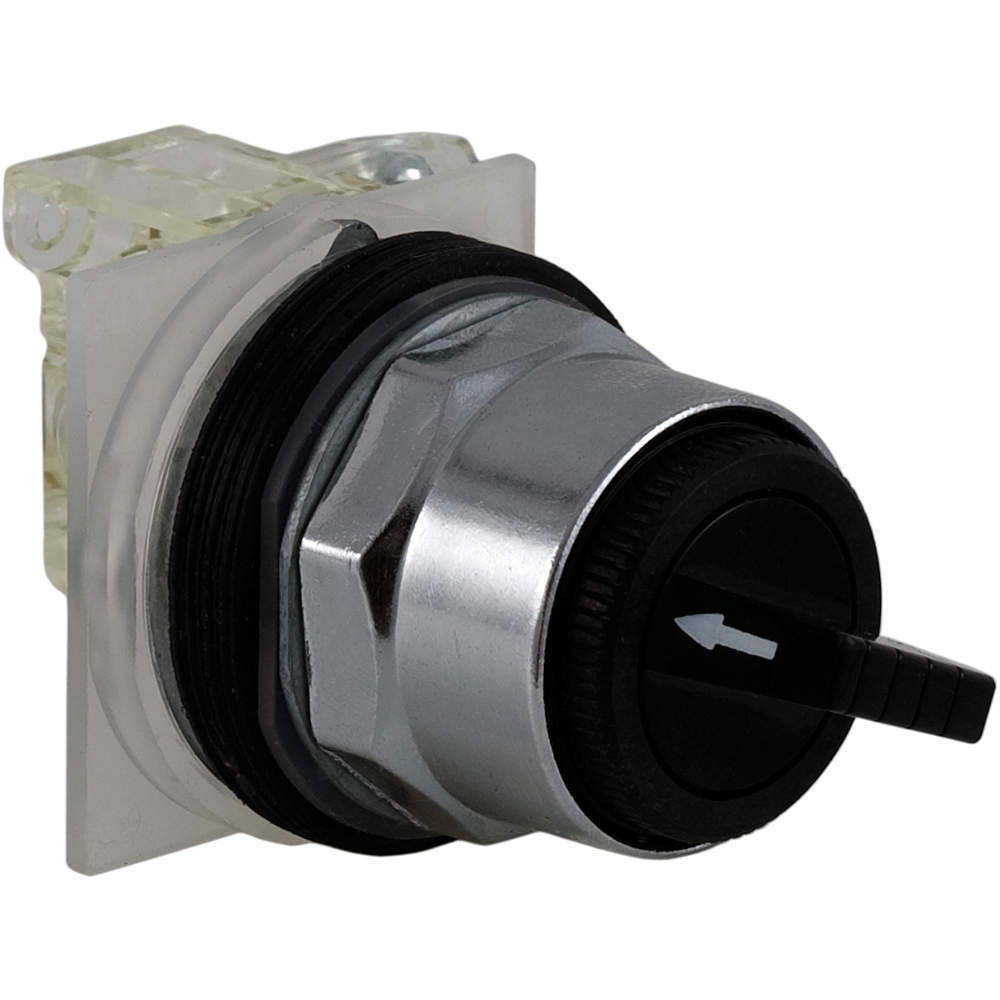

SCHNEIDER ELECTRIC 9001KS88BH2 Non-Illuminated Selector Switch 30mm 4 Position Lever

Item: AJ2HTZ
Model: 9001KS88BH2
26 In Stock

Ships within 2 days via

OOOX
XOOO
12; 13; 3; 3R; 4
£338.83
5.00% off
£321.89/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Non-Illuminated Select Switch
Ac Contact Rating 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
Action Maintained/Maintained/Maintained/Maintained
Action Type Maintained/Maintained/Maintained/Maintained
Basic Material Metal
Bezel Color Chrome
Bezel Material Metal
Cam Profile 8
Cap/operator Or Lens Colour Black
Contact Block Material Metal
Contact Form DPDT
Contact Rating 10A @ 600V AC
Dc Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @125V
Device Presentation Complete Product
Hazardous Location Specification Not Rated
Ip Rating IP66
Manufacturer Warranty Length 18 Months
Mounting Diameter 30 mm
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
Nema Rating NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
Number Of Positions 4
Operator Head Color Black
Operator Head Material Polycarbonate
Operator Illumination Non Illuminated
Panel Mounting Hole Diameter 30 mm
Series 9001K Series
Switch Function @ 1st Position On
Switch Function @ 2nd Position On
Switch Function @ 3rd Position On
Switch Function @ 4th Position On
Switch Head Type Short Lever
Switch Operation @ Position A OOOX
Switch Operation @ Position B XOOO
Switch Operation @ Position C OOXO
Type Of Operator Lever
standard CE, CSA LR24590 CLASS 3211 03, UL E42259 CCN NKCR

Product Details

    • Bezel Color : Chrome

Shipping Information

height 5.59
length 9.65
width 5.08
country of origin MX
weight 0.171000
