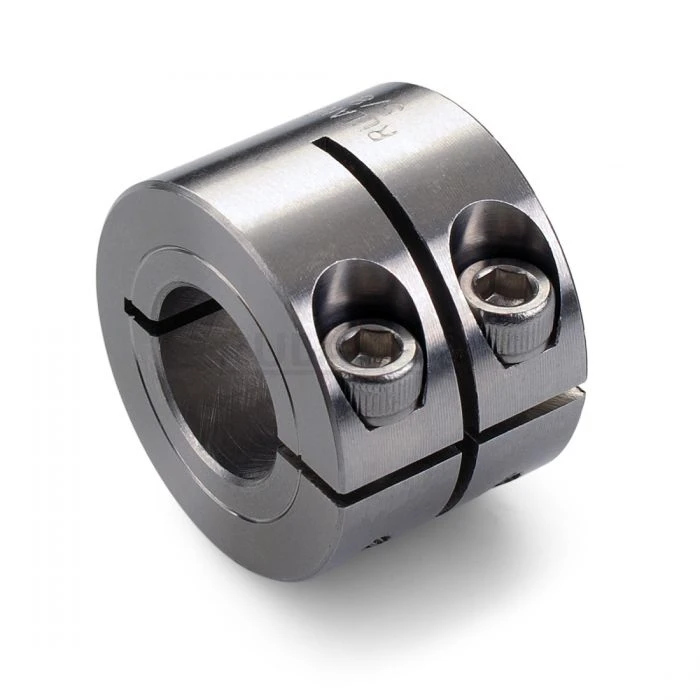

RULAND MANUFACTURING WCL-8-6-SS 0.5000 x 0.3750 Inch Short Rigid Coupling, 303 SS, One-Piece Clamp Style, 1 1/8 Inch OD, 7/8 Inch Lg.
Item: DK7AED
Model: WCL-8-6-SS
In Stock
Get it by Friday, Apr 17
1/2"
3/8"
Stainless Steel
1/2"
£78.34/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Bore (B1)
Small Bore (B2)
Material
Smaller Bore (B2)
Specifications
| Bore Tolerance | +0.0005" to +0.002" |
|---|---|
| Clearance Diameter (c) Max | 1.281" |
| Finish Specification | Bright, No Plating |
| Forged Clamp Screw | #8-32 |
| Hex Wrench Size | 9/64" |
| Length (l) | 7/8" |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Moment Of Inertia | 0.035 lbs.-in. |
| Number Of Screws | 2 EA |
| Outer Diameter | 1 1/8" |
| Recommended Hex Key | Inch Hex Keys |
|---|---|
| Recommended Shaft Tolerance | -0.0005" to 0" |
| Screw Finish | Bright |
| Screw Location (r) | 0.43" |
| Screw Material | Stainless Steel |
| Seating Torque | 28 lbs.-in. |
| Small Bore (b2) | 0.375" |
| Temperature | -40°F to 350°F |
| Torque Wrench | TW:BT-1R-1/4-28.0 |
| Width (w) | 7/8" |
Shipping Information
| Height | 2.86 |
|---|---|
| Length | 2.22 |
| Width | 2.22 |
| Country Of Origin | US |
|---|---|
| Weight | 0.086000 |
Related Products
| Style | Model | Screw Material | Bore Tolerance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | WCL-10-8-F | Alloy Steel | +0.0005" to +0.002" | 30.92 | |
| B | WCL-10-8-SS | Stainless Steel | +0.0005" to +0.002" | 72.65 | |
| B | WCL-16-14-SS | Stainless Steel | +0.0005" to +0.002" | 107.87 | |
| B | WCL-12-10-SS | Stainless Steel | +0.0005" to +0.002" | 88.13 | |
| A | WCL-12-10-F | Alloy Steel | +0.0005" to +0.002" | 33.72 | |
| A | WCL-14-12-F | Alloy Steel | +0.0005" to +0.002" | 41.26 | |
| A | WCL-16-14-F | Alloy Steel | +0.0005" to +0.002" | 41.89 |
