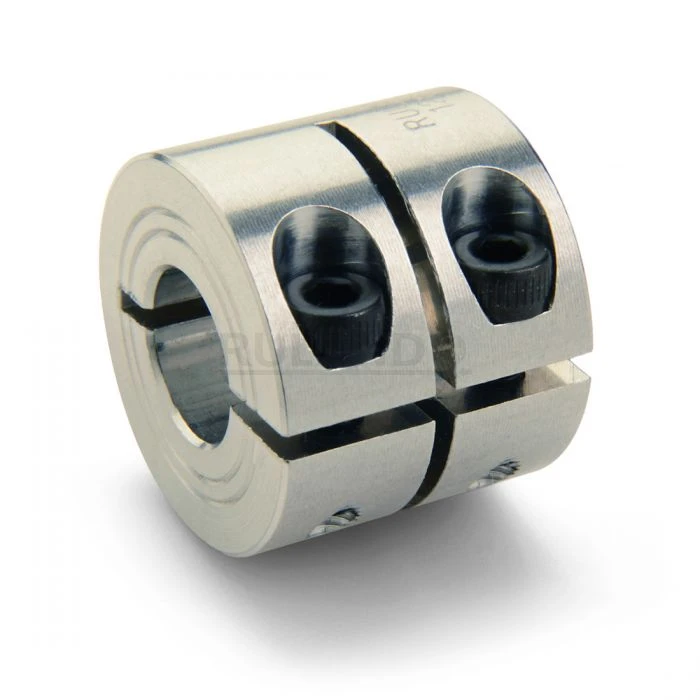

RULAND MANUFACTURING WCL-6-4-A 0.3750 x 0.2500 Inch Short Rigid Coupling, Aluminum, One-Piece Clamp Style, 7/8 Inch OD, 3/4 Inch Lg.

Item: DK7ADY
Model: WCL-6-4-A
In Stock

Get it by Friday, Apr 17

£27.46/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bore Tolerance +0.0005" to +0.002"
Clearance Diameter (c) Max 1.027"
Finish Specification Bright, No Plating
Forged Clamp Screw #6-32
Hex Wrench Size 7/64"
Length (l) 3/4"
Material Specification 2024-T351 Aluminum Bar
Moment Of Inertia 0.0042 lbs.-in.
Number Of Screws 2 EA
Outer Diameter 7/8"
Recommended Hex Key Inch Hex Keys
Recommended Shaft Tolerance -0.0005" to 0"
Screw Finish Black Oxide
Screw Location (r) 0.313"
Screw Material Alloy Steel
Seating Torque 28 lbs.-in.
Small Bore (b2) 0.25"
Temperature -40°F to 225°F
Torque Wrench TW:BT-1R-1/4-28.0
Width (w) 3/4"

Shipping Information

Height 2.22
Length 1.9
Width 1.9
Country Of Origin US
Weight 0.016600
