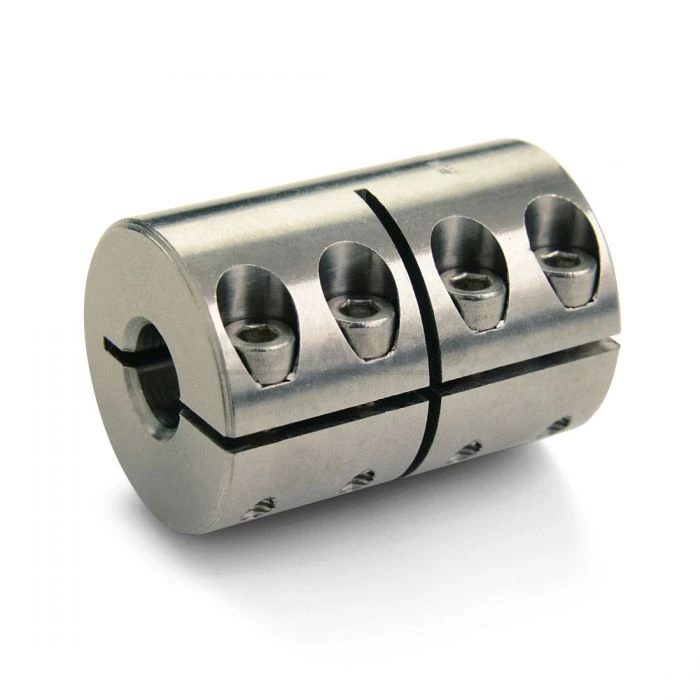

RULAND MANUFACTURING CLX-14-12-SS 7/8 x 3/4 Inch Rigid Coupling, 303 SS, One-Piece Clamp Style, 1 5/8 Inch OD, 2 1/2 Inch Lg.

Item: DK6EZD
Model: CLX-14-12-SS
23 In Stock

Ships within 2 days via

£182.02/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

B2 Max Shaft Penetration 1.25"
Bore (b1) 0.875" , 7/8"
Bore Tolerance +0.0005" to +0.002"
Clearance Diameter (c) Max 1.932"
Finish Specification Bright, No Plating
Forged Clamp Screw 1/4"-28
Full Bearing Support Required No
Hex Wrench Size 3/16"
Length (l) 2 1/2"
Material Specification Type 303 Austenitic, Non-Magnetic Bar
Max. Speed 4000 RPM
Moment Of Inertia 0.4373 lbs.-in.
Number Of Screws 4 EA
Nypatch Anti-vibration Hardware Yes
Outer Diameter 1 5/8"
Rated Torque 1100 lbs.-in.
Recommended Shaft Tolerance -0.0005" to 0"
Screw Finish Bright
Screw Location (r) 0.6"
Screw Material Stainless Steel
Seating Torque 110 lbs.-in.
Small Bore (b2) 0.75"
Temperature -40°F to 350°F
Zero-backlash Yes

Shipping Information

Height 4.13
Length 6.35
Width 4.13
Country Of Origin US
Weight 0.474800
