PARKER

See our 858 reviews on trustpilot

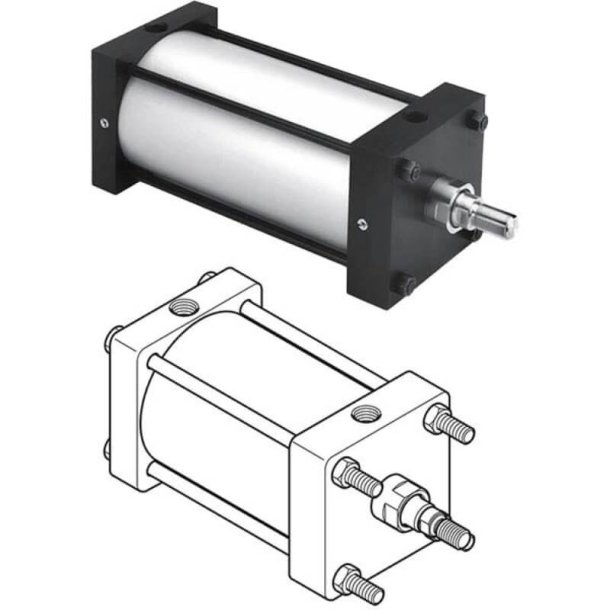

PARKER 8.00TB4MAB38A14.00 Pneumatic Cylinder

Item: EB9GNH
Model: 8.00TB4MAB38A14.00
In Stock

Get it by Thursday, Apr 16

Stroke Length
£2579.16/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 8"
Chemical Resistance Corrosion resistance
Connection Type 2 x 3/4" BSPT, RC3/4" Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod End
Connection Type 2 x 3/4" BSPT, Rc3/4" Threaded Pneumatic Ports 1 1/2"-12 UNF Male Intermediate Threaded Rod-End
Design LipSeal Piston Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable
Dia. 1 3/4"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Hard-Anodized Aluminium Cylinder Body Aluminium Piston Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Tie-Rods Extended Head End Mounting (NFPA MX3)
Mounting Mode Tie-Rods Extended Head End Mounting NFPA Mx3)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod Dia. 1 3/4"
Shape Rectangular
Standard Logo rohs.png
Stroke Length 14"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
