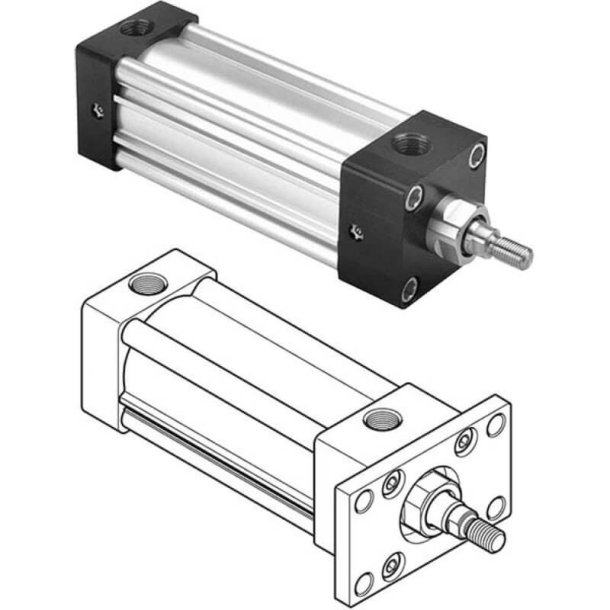

PARKER 3.25J4MA3UE155KA02.50 Pneumatic Cylinder

Item: EB6CZV
Model: 3.25J4MA3UE155KA02.50
In Stock

Get it by Thursday, Apr 16

£781.01/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports Special Rod-End For Use With Split Coupler
Design Piston Magnet "Lipseal" Piston Fluorocarbon Rod Wiper And Rod Seals Composite High-Load Rod Bearing Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston Fluorocarbon Rod Wiper And Rod Seals Composite High-Load Rod Brg. NFPA Interchangeable Model Repairable
dia. 1" No.1
Dia. 1"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Composite Bearing Pressed Into Bronze Alloy Gland 303 Stainless Steel Rod
Max. Air Service Pressure 250 psig
Mounting Head Rectangular Flange Mounting (NFPA MF1)
Mounting Mode Head Rectangular Flange Mounting NFPA MF1
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 2 1/2"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
