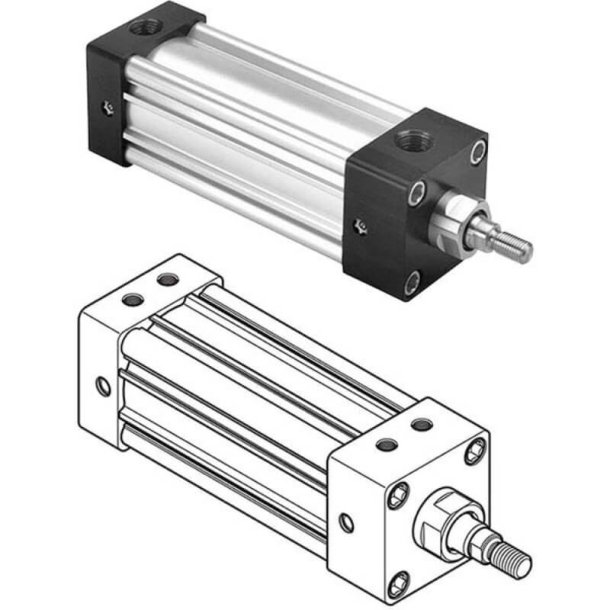

PARKER 3.25CTT4MA3U34AC14.00 Pneumatic Cylinder

Item: EB2RYM
Model: 3.25CTT4MA3U34AC14.00
In Stock

Get it by Friday, Apr 17

£1034.02/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Small Threaded Rod-End
Design Piston Magnet "Lipseal" Piston Small Male Rod-End Thread Cushion At Both Ends Aluminium Body (Steel Tie-Rods & Nuts) Nfpa Interchangeable Model Repairable
Design Piston Magnet LipSeal Piston Small Male Rod End Thread Cushion At Both Ends Aluminium Body (Steel Tie-Rods & Nuts) NFPA Interchangeable Model Repairable
dia. 1 3/8"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting No Mount (NFPA MX0)
Mounting Mode No Mounting
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 14"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Weight 1.125000
