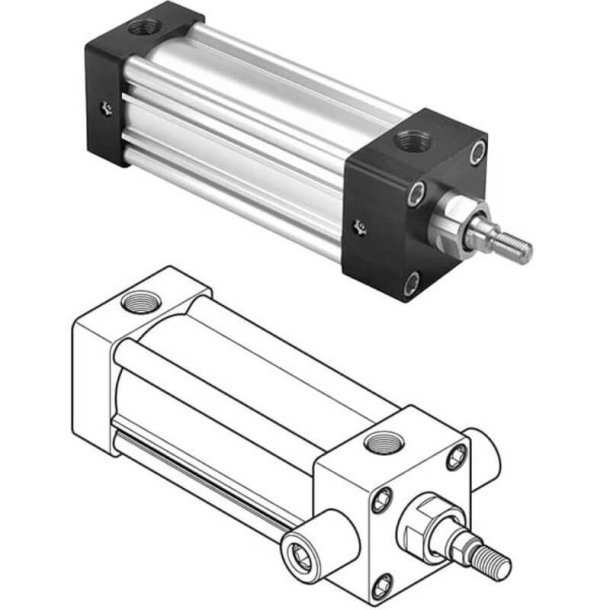

PARKER 3.25D4MAUE19A20.00 Pneumatic Cylinder

Item: EA9YTW
Model: 3.25D4MAUE19A20.00
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Short Threaded Rod End
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Short Threaded Rod-End
Design Piston Magnet LipSeal Piston Fluorocarbon Rod Wiper, Rod Seals Short Female Rod End Thread NFPA Interchangeable Model Repairable
Design Piston Magnet "Lipseal" Piston Fluorocarbon Rod Wiper And Rod Seals Short Female Rod-End Thread Nfpa Interchangeable Model Repairable
dia. 1" No.1
Dia. 1"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Fluoro Carbon Rod Wiper And Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Head Trunnion Mounting (NFPA MT1)
Mounting Mode Head Trunnion Mounting NFPA MT1
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 20"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
