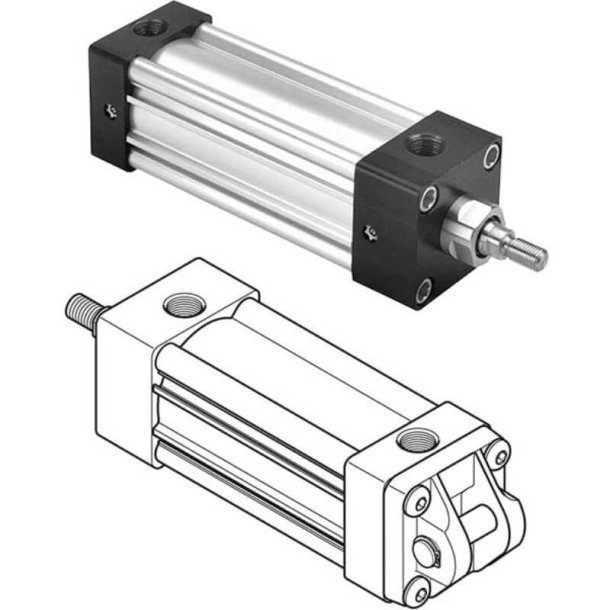

PARKER 3.25CBB4MA3U16AC04.00 Pneumatic Cylinder
Item: EB3ZMN
Model: 3.25CBB4MA3U16AC04.00
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
4"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 1"-14 UNF Male Full Threaded Rod-End |
| Design | Piston Magnet "LipSeal" Piston Full Male Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable |
| dia. | 1" No.1 |
| Dia. | 1" |
| function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Cap Fixed Clevis Mounting (NFPA MP1) |
| Mounting Mode | Cap Fixed Clevis Mounting NFPA MP1 |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Rectangular |
| Standard Logo | rohs.png |
| Stroke Length | 4" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
