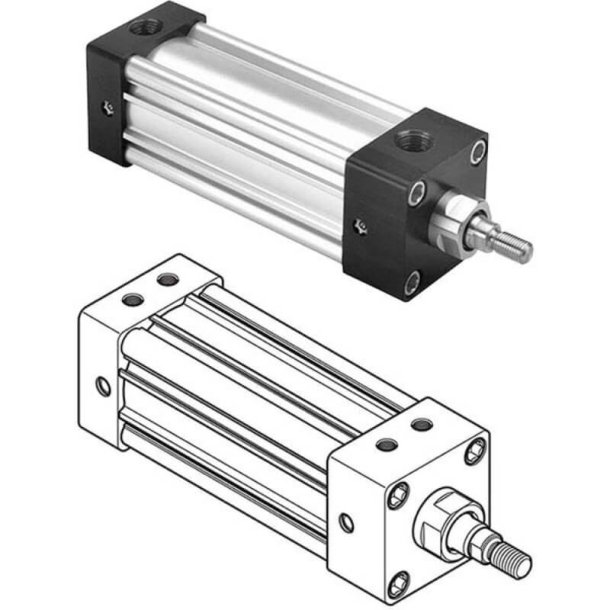

PARKER 3.25CTEF4MA2UV14AC18.00 Pneumatic Cylinder

Item: EB7EZC
Model: 3.25CTEF4MA2UV14AC18.00
In Stock

Get it by Wednesday, Apr 15

£1032.55/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +250°F
Ambient Air Temp. For Operation -10°F to +250°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End
Design "Lipseal" Piston Fluorocarbon Seals Small Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable
Design LipSeal Piston Fluorocarbon Seals Small Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1" No.1
Dia. 1"
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Fluoro Carbon Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-plated Carbon Steel Piston Rod
Max. Air Service Pressure 250 psig
Mounting Sleeve Nut With Side Tap Mounting (NFPA MX5, MS4)
Mounting Mode Sleeve Nut With Side Tap Mounting (NFPA MX5/MS4)
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 18"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
