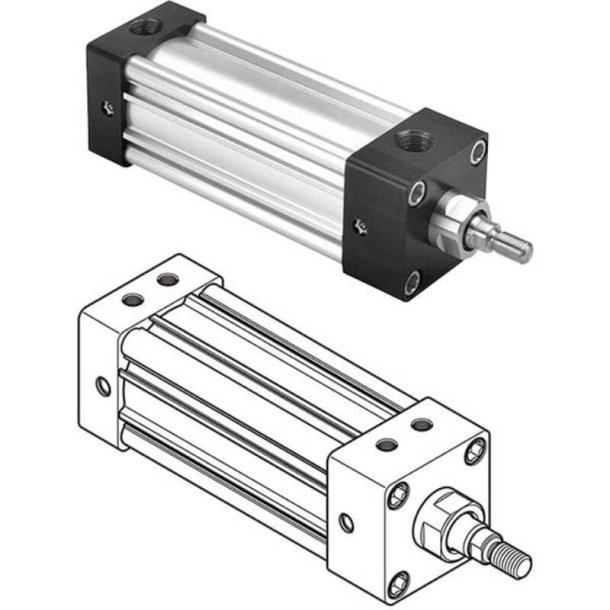

PARKER 3.25CF4MA3U18AC03.00 Pneumatic Cylinder
Item: EB9WEF
Model: 3.25CF4MA3U18AC03.00
In Stock
Get it by Wednesday, Apr 15
3"
£571.57/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Conveyors Assembly Packaging |
| Bore Size | 3 1/4" |
| Bumpers | W/O Bumpers |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/2" NPT Threaded Pneumatic Ports 7/8"-14 UNF Male Intermediate Threaded Rod-End |
| Cylinder Bore Size | 3.25" |
| Cylinder Material | Clear Anodized Aluminum Alloy |
| Cylinder Style | Tie Rod, NFPA |
| Design | Piston Magnet LipSeal Piston Intermediate Male Rod End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable |
| Design | Piston Magnet "Lipseal" Piston Intermediate Male Rod-End Thread Cushion At Both Ends Nfpa Interchangeable Model Repairable |
| dia. | 1" No.1 |
| End Type | Single Rod |
| Filter Media | Filtered Air |
| Filtration Requirement | 40 µm |
| function | Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
| Material | Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod |
| Min. Temp. Range | -10°F |
|---|---|
| Mounting | Side Tap Mounting (NFPA MS4) |
| Mounting Mode | Side Tap Mounting (NFPA MS4) |
| Piston Material | Aluminum |
| Piston No. | 1 |
| Port Size | 0.5 |
| Port Type | NPTF |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Rod End Style | Male, Intermediate |
| Rod End Thread | 7/8-14 |
| Rod Material | Case Hardened Chrome Plated Carbon Steel |
| Rod Thread Type | UNF |
| Seal Material | Nitrile |
| Seal Type | Lip Seal |
| Series | 4MA Series |
| Shape | Rectangular |
| Standard Logo | rohs.png |
| Stroke Length | 3" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
