PARKER

See our 858 reviews on trustpilot

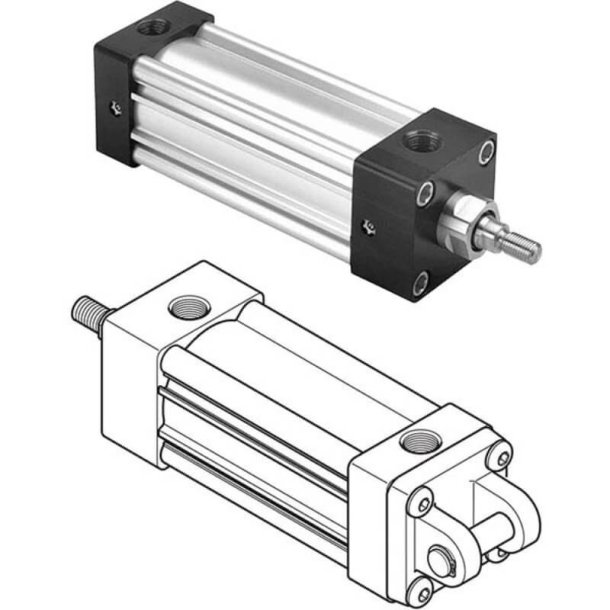

PARKER 3.25CBC4MA3U19AC18.44 Pneumatic Cylinder

Item: EB4EJF
Model: 3.25CBC4MA3U19AC18.44
In Stock

Get it by Wednesday, Apr 15

£902.74/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Bumpers W/O Bumpers
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Short Threaded Rod End
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Female Short Threaded Rod-End
Cylinder Bore Size 3.25"
Cylinder Material Clear Anodized Aluminum Alloy
Cylinder Style Tie Rod, NFPA
Design Piston Magnet "LipSeal" Piston Short Female Rod-End Thread Cushion At Both Ends NFPA Interchangeable Model Repairable
dia. 1" No.1
End Type Single Rod
Filter Media Filtered Air
Filtration Requirement 40 µm
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing Hard Chrome-Plated Carbon Steel Piston Rod
Min. Temp. Range -10°F
Mounting Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode Cap Detachable Clevis Mounting NFPA MP2
Piston Material Aluminum
Piston No. 1
Port Size 0.5
Port Type NPTF
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod End Style Female, Short
Rod End Thread 3/4-16
Rod Material Case Hardened Chrome Plated Carbon Steel
Rod Thread Type UNF
Seal Material Nitrile
Seal Type Lip Seal
Series 4MA Series
Shape Rectangular
Standard Logo rohs.png
Stroke Length 18.44"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
