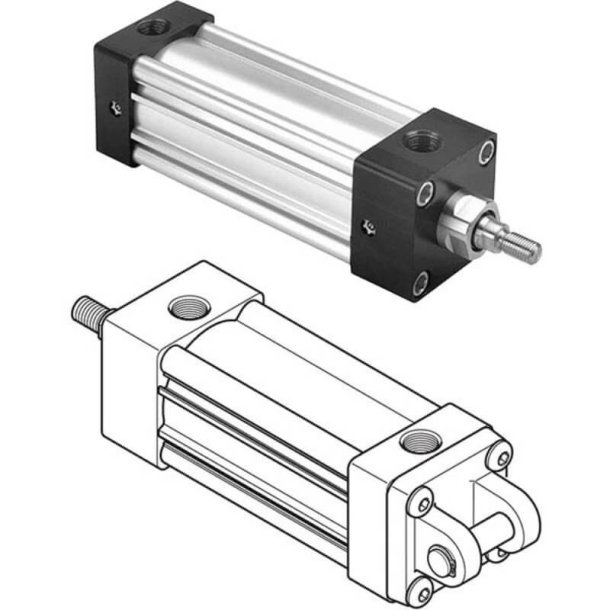

PARKER 3.25BC4MA2UV14TA01.00 Pneumatic Cylinder

Item: EB4WLZ
Model: 3.25BC4MA2UV14TA01.00
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +250°F
Ambient Air Temp. For Operation -10°F to +250°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 3/4"-16 UNF Male Small Threaded Rod-End
Design LipSeal Piston Fluorocarbon Seals Small Male Rod End Thread Composite High Load Rod Brg. NFPA Interchangeable Model Repairable
Design "Lipseal" Piston Fluorocarbon Seals Small Male Rod-End Thread Composite High-Load Rod Bearing Nfpa Interchangeable Model Repairable
dia. 1" No.1
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Fluoro Carbon Seals Aluminium Piston With Nylon Wear Band Composite Piston Bearing Composite Bearing Pressed Into Bronze Alloy Gland 316 Stainless Steel Rod
Max. Air Service Pressure 250 psig
Mounting Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode Cap Detachable Clevis Mounting NFPA MP2
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Shape Rectangular
Standard Logo rohs.png
Stroke Length 1"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
