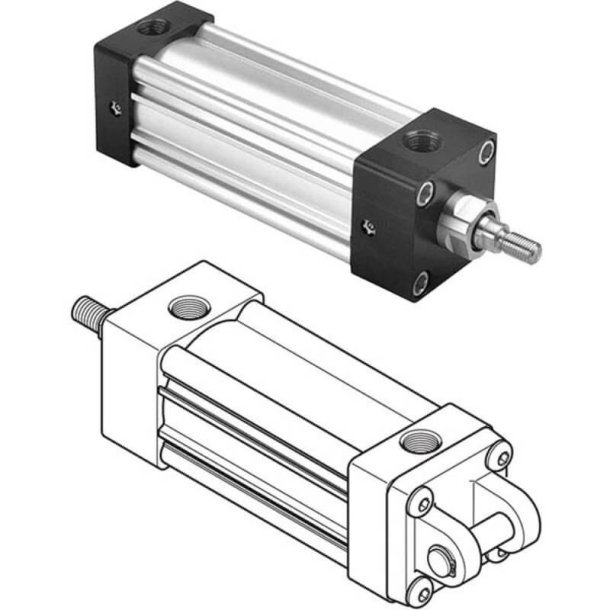

PARKER 3.25BC4MA1U18JA02.00 Pneumatic Cylinder

Item: EB2NTT
Model: 3.25BC4MA1U18JA02.00
In Stock

Get it by Wednesday, Apr 15

£596.66/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Air Temp. -10°F to +165°F
Ambient Air Temp. For Operation -10°F to +165°F
Application Type General Industry Conveyors Assembly Packaging
Bore Size 3 1/4"
Bumpers W/O Bumpers
Chemical Resistance Corrosion resistance
Connection Type 2 x 1/2" NPT Threaded Pneumatic Ports 7/8"-14 UNF Male Intermediate Threaded Rod-End
Corrosion Resistant Yes
Cylinder Bore Size 3.25"
Cylinder Material Clear Anodized Aluminum Alloy
Cylinder Style Tie Rod, NFPA
Design LipSeal Piston Intermediate Male Rod End Thread NFPA Interchangeable Model Repairable
dia. 1" No.1
End Type Single Rod
Filter Media Filtered Air
Filtration Requirement 40 µm
function Double Acting Non Lube NFPA Tie Rod Pneumatic Cylinder
Magnetic Ring No
Main Function Pneumatic Cylinder
Material Anodized Aluminium Cylinder Body Aluminium Piston With Nylon Wear Band Composite Piston Bearing Bronze Gland Bronze Rod Bearing 303 Stainless Steel Rod
Min. Temp. Range -10°F
Mounting Cap Detachable Clevis Mounting (NFPA MP2)
Mounting Mode Cap Detachable Clevis Mounting NFPA MP2
Piston No. 1
Port Size 0.5
Port Type NPTF
Pressure 250 psig (Max. Air Service) 17 Bar (Max. Air Service)
Rod End Style Male, Intermediate
Rod End Thread 7/8-14
Rod Material Stainless Steel
Rod Thread Type UNF
Seal Material Nitrile
Seal Type Lip Seal
Series 4MA Series
Shape Rectangular
Standard Logo rohs.png
Stroke Length 2"

Product Details

Cylinder

Shipping Information

height 2.54
length 2.54
width 2.54
weight 1.125000
