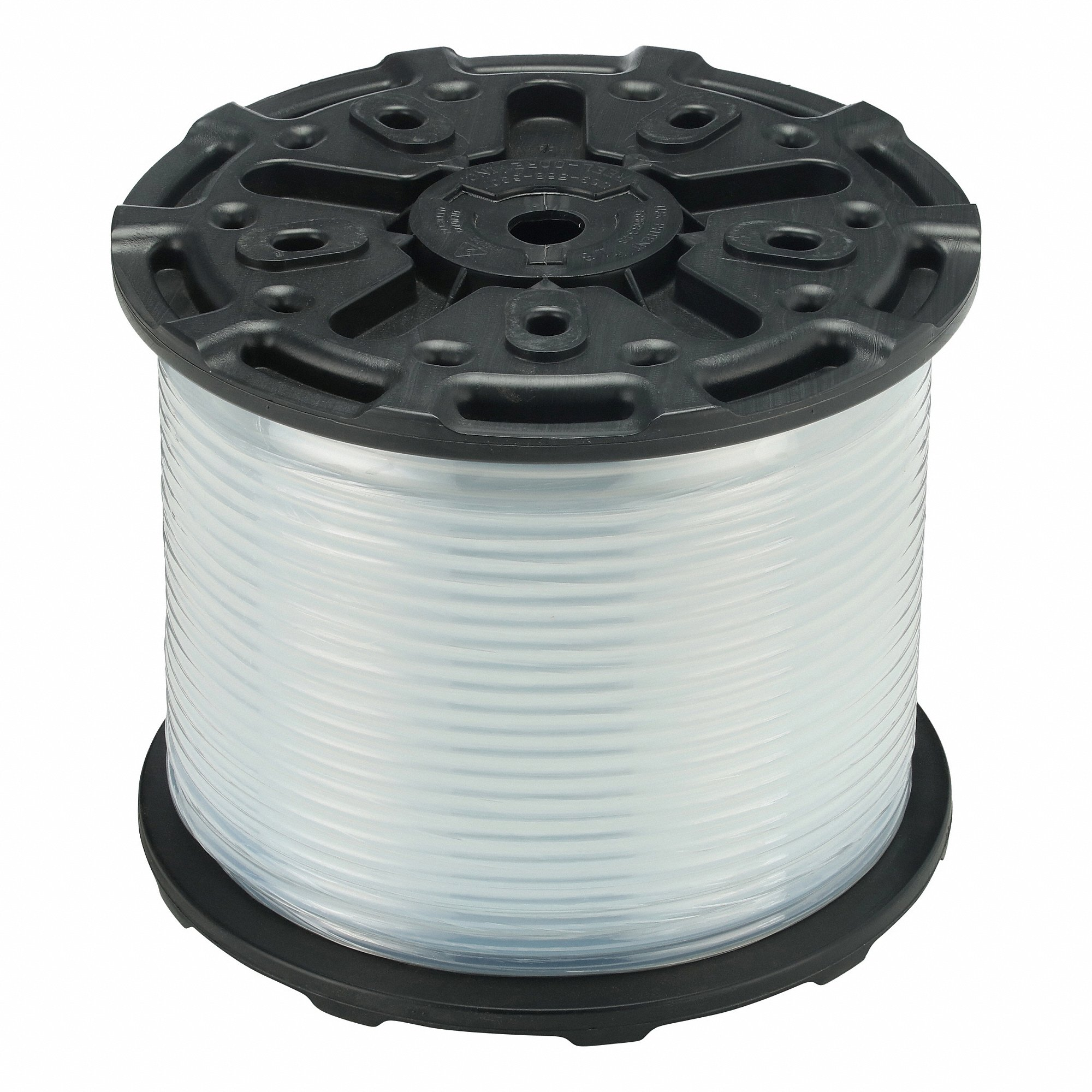

PARKER 103-0500062-NT-500 Tubing, Fep, Clear, 3/8 Inch Id, 1/2 Inch OD, 500 Ft Length, Shore D 55
Item: CT7LFW
Model: 103-0500062-NT-500
In Stock
Get it by Wednesday, Apr 15
5.00% off
£9078.28/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Chemicals, Fluid Transfer, Gas Sampling, Water |
|---|---|
| Autoclavable | Yes |
| Burst Pressure | 840 psi |
| Clarity | Clear |
| Coil Weight | 39.5 lbs. |
| Color | Natural |
| Compatible Tube Wall Thickness | 0.062" |
| End 1 Size | 1/2" |
| End 1 Type | NPT |
| End 2 Size | 1/2" |
| End 2 Type | NPT |
| Features | Chemically Inert To Nearly All Industrial Chemicals And Solvents, Non-Wetting, Nonflammable, Weldable |
| Fitting Compatibility | Compression |
| Flow Application | Fluid Transfer, Food And Beverage, Water Purification |
| For Fluid Type | Beverages, Gas, Water |
| For Location | Indoor, Outdoor |
| For Potable Water Use | Yes |
| Hardness | Shore D 55 |
| Industry Application | Laboratory, Life Science |
| Inside Dia. | 3/8" |
| Length | 500 ft. |
|---|---|
| Material | Teflon |
| Material Trade Name | Not Applicable |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 210 psi |
| Max. Pressure Range | 1000 psi |
| Maximum Operating Pressure | 210 psi |
| Min. Operating Temp. | -100°F |
| Outside Dia. | 1/2" |
| Outside Dia. Tolerance | -0.005 to +0.005 |
| Outside Diameter Tolerance | -0.005" to +0.005" |
| Overall Length | 500 ft. |
| Resistance Properties | Chemical Resistant, Crack Resistant, UV Resistant |
| Series | FEP Series |
| Stripe Color | No Stripe |
| System Of Measurement | Inch |
| Tensile Strength | 5000 psi |
| Tube Form | Coil |
| Weight Per Foot | 0.079 lbs.-ft. |
| standard | 21 CFR 177.1550, ASTM D2116, UL 94 V-0, USP CLASS VI COMPLIANT |
Product Details
Tubing
Shipping Information
| country of origin | US |
|---|
| weight | 21.285000 |
|---|
Related Products
| Style | Model | Outside Dia. | Inside Dia. | Wall Thickness | Clarity | Fitting Compatibility | Overall Length | Outside Dia. Tolerance | Outside Diameter Tolerance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 103-0563031-NT-100 | 0.563" | 1/2" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | 895.59 | |
| B | 103-0375062-NT-25 | 3/8" | 1/4" | 0.062" | Clear | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | 328.98 | |
| B | 103-0500062-NT-100 | 1/2" | 3/8" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | 1,811.49 | |
| B | 103-0500062-NT-25 | 1/2" | 3/8" | 0.062" | - | Compression | 25 ft. | -0.005 to +0.005 | -0.005" to +0.005" | 451.57 | |
| B | 103-0375031-NT-100 | 3/8" | 0.312" | 0.031" | Clear | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | 739.73 | |
| B | 103-0438062-NT-100 | 0.438" | 0.312" | 0.062" | - | Compression | 100 ft. | -0.005 to +0.005 | -0.005" to +0.005" | 1,497.75 | |
| B | 103-0500031-NT-100 | 1/2" | 0.438" | 0.031" | - | Compression | 100 ft. | -0.006 to +0.006 | -0.006" to +0.006" | 797.95 |
