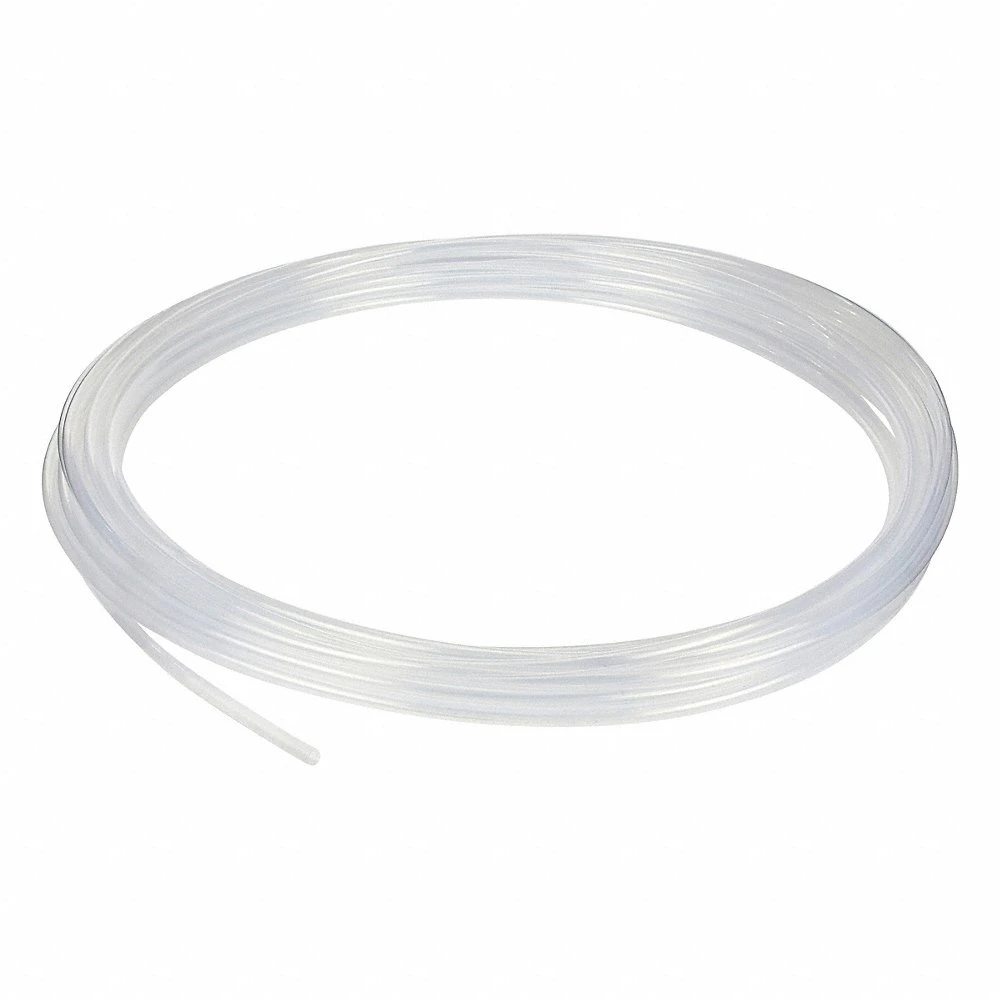

PARKER 103-0563031-NT-100 Tubing, Fep, Clear, 1/2 Inch Id, 9/16 Inch OD, 100 Ft Length, Shore D 55

Item: CT7KRR
Model: 103-0563031-NT-100
22 In Stock

Ships within 2 days via

£1264.36
5.00% off
£1201.14/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Chemicals, Fluid Transfer, Gas Sampling, Water
Color Natural
Compatible Tube Wall Thickness 0.031"
End 1 Size 9/16"
End 1 Type NPT
End 2 Size 9/16"
End 2 Type NPT
Features Chemically Inert To Nearly All Industrial Chemicals And Solvents, Non-Wetting, Nonflammable, Weldable
Fitting Compatibility Compression
For Fluid Type Beverages, Gas, Water
For Location Indoor, Outdoor
For Potable Water Use Yes
Industry Application Laboratory, Life Science
Inside Dia. 1/2"
Length 100 ft.
Material Teflon
Material Trade Name Not Applicable
Max. Operating Temp. 400°F
Max. Pressure 80 psi
Max. Pressure Range 320 psi
Maximum Operating Pressure 80 psi
Min. Operating Temp. -100°F
Outside Dia. 0.563"
Outside Dia. Tolerance -0.006 to +0.006
Outside Diameter 9/16"
Outside Diameter Tolerance -0.006" to +0.006"
Overall Length 100 ft.
Resistance Properties Chemical Resistant, Crack Resistant, UV Resistant
Series FEP Series
Stripe Color No Stripe
System Of Measurement Inch
Tensile Strength 5000 psi
Tube Form Coil
Wall Thickness 0.031"
Weight Per Foot 0.054 lbs.-ft.
standard 21 CFR 177.1550, ASTM D2116, UL 94 V-0, USP CLASS VI COMPLIANT

Product Details

Tubing

Shipping Information

height 2.54
length 1.43
width 1.43
country of origin US
weight 2.880000
