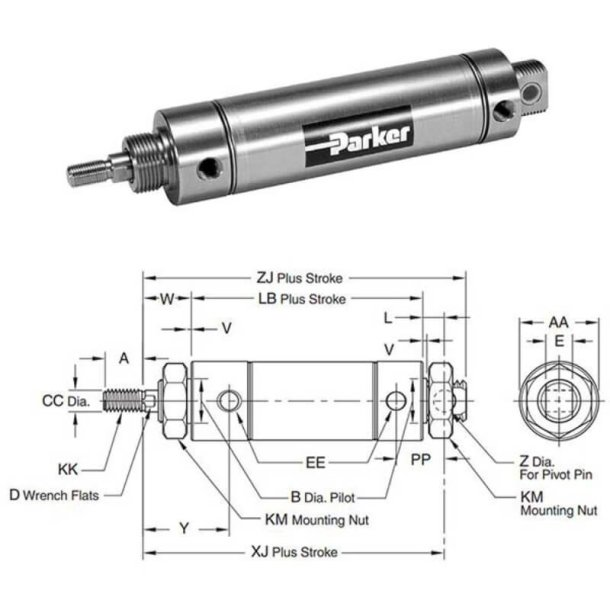

PARKER 1.50DXPSRGBY03.00 Pneumatic Cylinder
Item: EB3VCL
Model: 1.50DXPSRGBY03.00
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +165°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +165°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Threaded Rod-End |
| Design | "LipSeal" Piston 303 Stainless Steel Head And Cap Piston Bumpers Both Ends Non-Repairable |
| dia. | 7/16" |
| function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | Stainless Steel Cylinder Body Aluminium Piston Oil-impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Pivot, Nose Mounting |
| Mounting Mode | Pivot And Nose Mounting (Without Pivot Pin) |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
Related Products
| Style | Model | MPN | Price (ex. VAT) | Cart |
|---|---|---|---|---|
| A | 1.50DXPSRGBY12.00 | 1.50DXPSRGBY12.00 | 339.90 | |
| B | 1.50DXPSRGY08.00 | 1.50DXPSRGY08.00 | 303.90 | |
| C | 1.50DSRGY12.00 | 1.50DSRGY12.00 | 295.17 | |
| D | 1.50DXPSRGVY01.00 | 1.50DXPSRGVY01.00 | 290.99 | |
| E | 1.50DSRGVY06.00 | 1.50DSRGVY06.00 | 288.53 | |
| F | 1.50DSRGVY03.00 | 1.50DSRGVY03.00 | 269.87 | |
| G | 1.50DXPSRGBY02.00 | 1.50DXPSRGBY02.00 | 277.63 |
