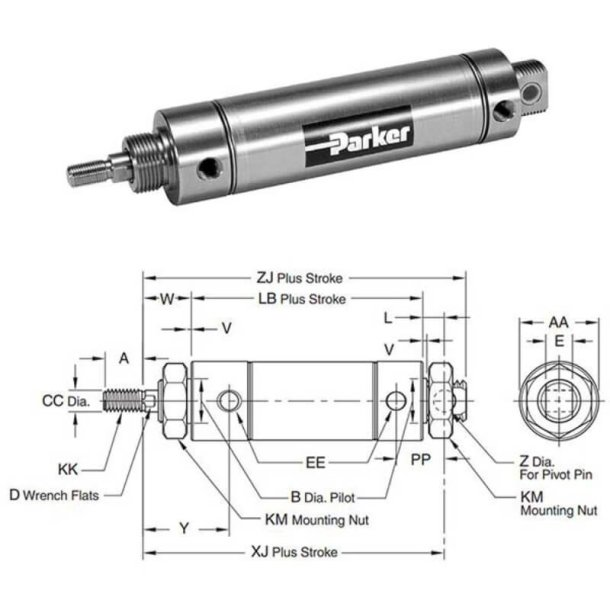

PARKER 1.50DSRGVY03.00 Pneumatic Cylinder
Item: EB2DJE
Model: 1.50DSRGVY03.00
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
3"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Air Temp. | -10°F to +250°F |
|---|---|
| Ambient Air Temp. For Operation | -10°F to +250°F |
| Application Type | General Industry Assembly Conveyors Packaging |
| Bore Size | 1 1/2" |
| Chemical Resistance | Corrosion resistance |
| Connection Type | 2 x 1/8" NPT Threaded Pneumatic Ports 7/16"-20 UNF Male Threaded Rod-End |
| Design | "LipSeal" Piston 303 Stainless Steel Head And Cap Fluorocarbon Seals Non-Repairable |
| dia. | 7/16" |
| function | Double-Acting Stainless Steel Pneumatic Cylinder |
| Main Function | Pneumatic Cylinder |
|---|---|
| Material | 304 Stainless Steel Cylinder Body Fluoro Carbon Seals Aluminium Piston Oil-Impregnated Bronze Rod Bushing Stainless Steel Piston Rod |
| Max. Air Service Pressure | 250 psig |
| Mounting | Nose Mounting |
| Mounting Mode | Nose Mounting |
| Pressure | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) |
| Shape | Cylindrical |
| Stroke Length | 3" |
Product Details
Cylinder
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.125000 |
Related Products
| Style | Model | MPN | Price (ex. VAT) | Cart |
|---|---|---|---|---|
| A | 1.50DXPSRGBY12.00 | 1.50DXPSRGBY12.00 | 339.90 | |
| B | 1.50DXPSRGY08.00 | 1.50DXPSRGY08.00 | 303.90 | |
| C | 1.50DSRGY12.00 | 1.50DSRGY12.00 | 295.17 | |
| D | 1.50DXPSRGVY01.00 | 1.50DXPSRGVY01.00 | 290.99 | |
| E | 1.50DSRGVY06.00 | 1.50DSRGVY06.00 | 288.53 | |
| F | 1.50DXPSRGBY02.00 | 1.50DXPSRGBY02.00 | 277.63 | |
| G | 1.50DXPSRGY07.00 | 1.50DXPSRGY07.00 | 297.61 |
