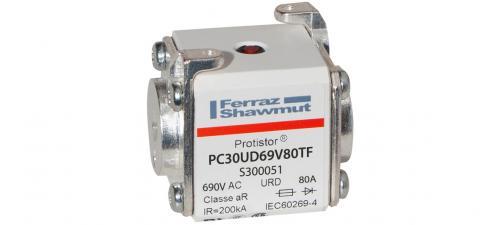

MERSEN FERRAZ S300051 PC30UD69V80TF Fuse, 80A, 3PK
Item: CH6BMD
Model: S300051
In Stock
Get it by Wednesday, Apr 15
£1627.84/pkg. of 3
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Max I.r./breaking Capacity I1 | 200 kA |
|---|---|
| Ac/dc | AC |
| Ampere Rating | 80A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 1.9 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 30 |
| Height | 48 mm |
| Indication System | Yes |
| Indication System Type | Striker |
|---|---|
| Length | 50.6 mm |
| Melting I2t | 0.33 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 19 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 40 mm |
Product Details
Fuse
Shipping Information
| height | 5.51 |
|---|---|
| length | 13.49 |
| width | 8.51 |
|---|---|
| weight | 0.733000 |
Related Products
| Style | Model | Amps | Visual Indication | Mounting | Height | Fuse Size | Ac Voltage | Body Material | Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B300059 | - | - | Bolted | 48 mm | 30 | - | - | - | 1,459.99 | |
| B | B300128 | - | - | Bolted | 48 mm | 30 | - | - | - | 362.07 | |
| C | B300404 | - | - | Bolted | 48 mm | 30 | - | - | - | 1,495.73 | |
| D | C300129 | - | - | Bolted | 48 mm | 30 | - | - | - | 362.07 | |
| E | C300405 | - | - | Bolted | 48 mm | 30 | - | - | - | 1,495.73 | |
| B | D300130 | - | - | Bolted | 48 mm | 30 | - | - | - | 362.07 | |
| F | E300108 | - | - | Bolted | 48 mm | 30 | - | - | - | 1,289.01 |
