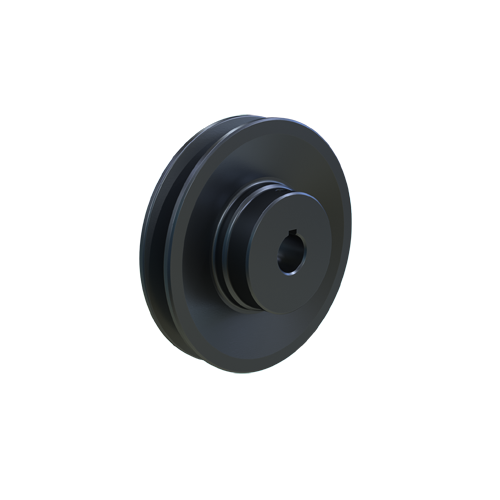

MARTIN SPROCKET AK44 5/8 Sheave, 0.625 Inch Bore, 0.750 Inch Face Width, 4.250 Inch Outside Dia., Cast Iron
Item: BA4GZL
Model: AK44 5/8
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
4.250"
0.625"
£47.41/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 3l Belt Pitch Dia. | 3.66" |
|---|---|
| 4la Or A Belt Pitch Dia. | 4" |
| Bore Diameter | 5/8" |
| Bore Type | Finished |
| Face Width | 3/4" |
| Hub Diameter | 2 1/4" |
| Hub Projection | 15/32" |
| Length | 1 7/32" |
| Material | Cast Iron |
|---|---|
| Number Of Grooves | 1 |
| Outside Dia. | 4 1/4" |
| Outside Diameter | 4 1/4" |
| Series | AK Series |
| Suitable For Use With | A, 4L Cross Section V Belts |
| Type | Bored to Size Type B Web |
Product Details
Sheave
Shipping Information
| height | 3.1 |
|---|---|
| length | 10.8 |
| width | 10.8 |
| country of origin | US |
|---|---|
| weight | 0.855000 |
