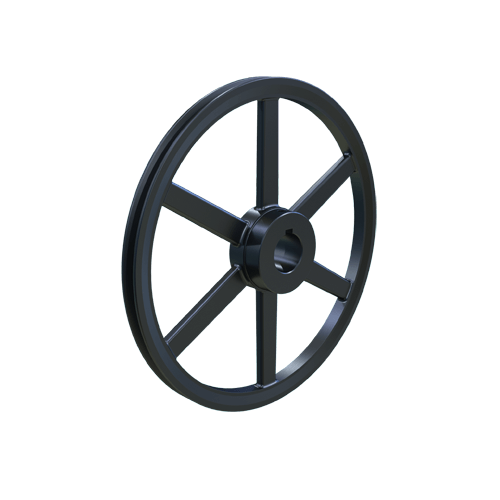

MARTIN SPROCKET AK124 1 7/16 Sheave, 1.438 Inch Bore, 12.250 Inch Outside Dia., 1 Groove, Cast Iron
Item: AM3KTP
Model: AK124 1 7/16
In Stock
Get it by Thursday, Apr 16
12.250"
1.438"
£138.79/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 3l Belt Pitch Dia. | 11.66" |
|---|---|
| 4la Or A Belt Pitch Dia. | 12" |
| Bore Diameter | 1 7/16" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 3/4" |
| Hub Diameter | 3" |
| Hub Projection | 0.719" |
| Length | 1 15/32" |
|---|---|
| Material | Cast Iron |
| Number Of Grooves | 1 |
| Outside Dia. | 12 1/4" |
| Outside Diameter | 12 1/4" |
| Series | AK Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Product Details
Sheave
Shipping Information
| height | 1.9 |
|---|---|
| length | 31.12 |
| width | 31.12 |
| country of origin | US |
|---|---|
| weight | 3.240000 |
Related Products
| Style | Model | Outside Dia. | Face Width | Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | AK104 1 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| B | AK104 1 1/4 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| C | AK104 1 3/16 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| D | AK104 1 7/16 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| E | AK104 3/4 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| C | AK104 5/8 | 10 1/4" | 3/4" | Cast Iron | 92.00 | |
| F | AK109 1 | 10 3/4" | 3/4" | Cast Iron | 98.63 |
