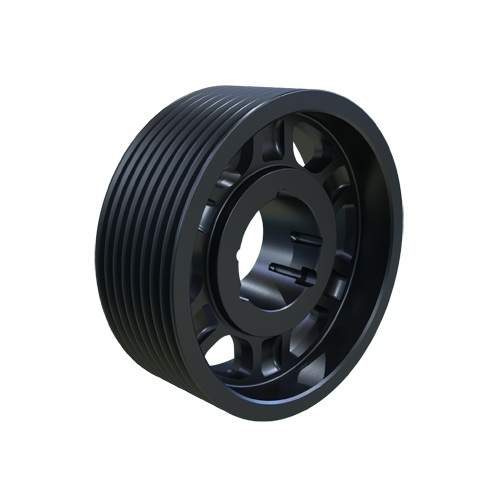

MARTIN SPROCKET 8 5V 1600 TB Sheave, TB Bushing, 16 Inch Outside Dia., 8 Groove, 15.9 Inch Pitch Dia., Cast Iron
Item: AZ9EKD
Model: 8 5V 1600 TB
In Stock
Get it by Thursday, Apr 16
16"
£1558.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" to 3 1/4" |
|---|---|
| Bore Type | TB Bushed |
| Bushing Type | 3535 |
| Color | Gray |
| Face Width | 5 13/16" |
| Length | 5.81" |
| Material | Cast Iron |
| Number Of Grooves | 8 |
|---|---|
| Outside Dia. | 16" |
| Outside Diameter | 16" |
| Pitch Dia. | 15.9" |
| Suitable For Use With | 5V Cross Section V Belts |
| Type | Type A-2 Web |
Product Details
Shipping Information
| Height | 5.08 |
|---|---|
| Length | 40.64 |
| Width | 40.64 |
| Country Of Origin | US |
|---|---|
| Weight | 45.900000 |
Related Products
| Style | Model | Outside Dia. | Type | Face Width | Pitch Dia. | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 8 5V 710 TB | 7.1" | Solid Type A-1 | 5.813" | - | Cast Iron | - | 381.11 | |
| B | 8 5V 750 TB | 7 1/2" | Solid Type A-1 | 5 13/16" | 7 2/5" | Cast Iron | Gray | 422.12 | |
| C | 8 5V 800 TB | 8" | Solid Type A-1 | 5.813" | 7.9" | Cast Iron | - | 462.71 | |
| D | 8 5V 850 TB | 8 1/2" | Solid Type A-1 | 5 13/16" | 8 2/5" | Cast Iron | Gray | 519.52 | |
| E | 8 5V 900 TB | 9" | Solid Type A-1 | 5 13/16" | 8.9" | Cast Iron | Gray | 543.88 | |
| F | 8 5V 925 TB | 9 1/4" | Solid Type A-1 | 5 13/16" | 9.15" | Cast Iron | Gray | 608.82 | |
| G | 8 5V 975 TB | 9 3/4" | Solid Type A-1 | 5 13/16" | 9.65" | Cast Iron | Gray | 649.40 |
