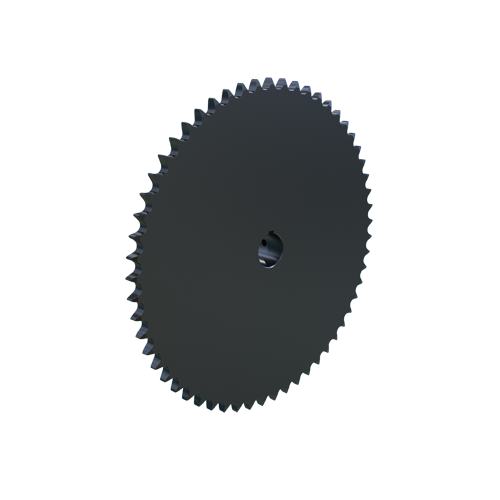

MARTIN SPROCKET 50BS57 1 3/16 Roller Chain Sprocket, Bore To Size, 1.188 Inch Bore, 11.703 Inch Outside Dia. Steel
Item: BA3DLW
Model: 50BS57 1 3/16
In Stock
Get it by Friday, Apr 17
11.703"
1.188"
£160.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 3/16" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 3 3/4" |
| Hub Outside Dia. | 3 3/4" |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
|---|---|
| No. Of Teeth | 57 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 57 |
| O.d. | 11.703" |
| Outside Dia. | 11.703" |
| Pitch | 5/8" |
| Pitch Dia. | 11.3455" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 11.703" |
| Storage Dimension Width | 11.703" |
| Type | Type B Bored to Size Single Strand Welded |
Product Details
Shipping Information
| Height | 3.18 |
|---|---|
| Length | 29.72 |
| Width | 29.72 |
| Country Of Origin | US |
|---|---|
| Weight | 5.220000 |
Related Products
| Style | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 50BS9 5/8 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 34.60 | |
| B | 50BS9 3/4 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | 34.60 | |
| C | 50BS10 5/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 37.17 | |
| D | 50BS10 3/4 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | 37.17 | |
| E | 50BS10 7/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 7/8" | 50 | 5/8" | 37.17 | |
| F | 50BS10 1 | 2.0225" | 10 | 2.299" | 1" | 5/16"-18 | 1" | 50 | 5/8" | 37.17 | |
| G | 50BS11 5/8 | 2.218" | 11 | 2.504" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 38.82 |
