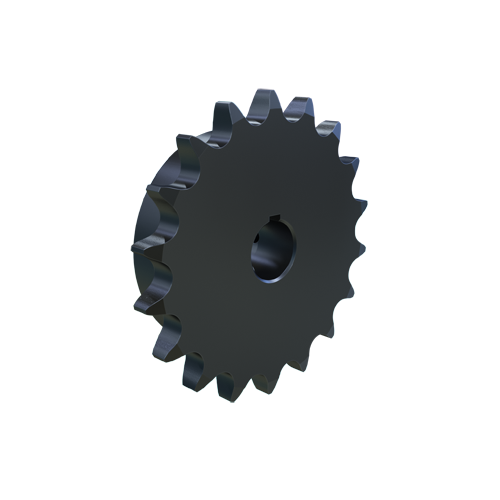

MARTIN SPROCKET 50BS18 3/4 Roller Chain Sprocket, Bore To Size, 0.750 Inch Bore, 3.920 Inch Outside Dia. Steel
Item: AJ8WVW
Model: 50BS18 3/4
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
3.920"
0.750"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 3/4" |
|---|---|
| Bore Size | 3/4" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Diameter | 2 7/8" |
| Hub Outside Dia. | 2 7/8" |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
|---|---|
| No. Of Teeth | 18 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 18 |
| O.d. | 3 23/25" |
| Outside Dia. | 3 23/25" |
| Pitch | 5/8" |
| Pitch Dia. | 3.5992" |
| Pitch Diameter | 3.599" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.69 |
|---|---|
| length | 9.96 |
| width | 9.96 |
| country of origin | US |
|---|---|
| weight | 0.765000 |
Related Products
| Style | Model | Pitch Dia. | Number Of Teeth | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 50BS9 5/8 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 40.70 | |
| B | 50BS9 3/4 | 1.8274" | 9 | 2.092" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | 40.70 | |
| C | 50BS10 5/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 43.73 | |
| D | 50BS10 3/4 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 3/4" | 50 | 5/8" | 43.73 | |
| E | 50BS10 7/8 | 2.0225" | 10 | 2.299" | 1" | 1/4"-20 | 7/8" | 50 | 5/8" | 43.73 | |
| F | 50BS10 1 | 2.0225" | 10 | 2.299" | 1" | 5/16"-18 | 1" | 50 | 5/8" | 43.73 | |
| G | 50BS11 5/8 | 2.218" | 11 | 2.504" | 1" | 1/4"-20 | 5/8" | 50 | 5/8" | 45.67 |
