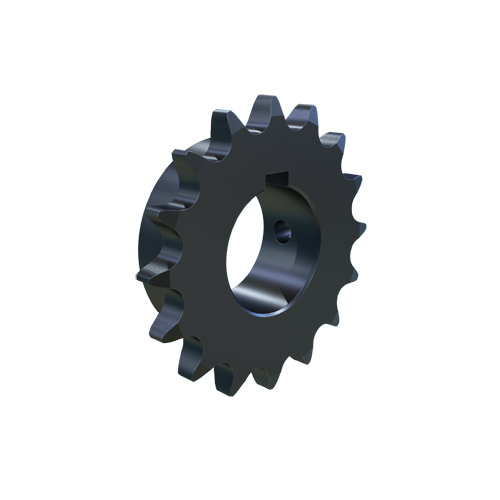

MARTIN SPROCKET 50BS16HT 1 1/2 Roller Chain Sprocket, 1.5 Inch Bore, 3.517 Inch Outside Dia. Steel, Hardened

Item: AJ9HVA
Model: 50BS16HT 1 1/2
21 In Stock

Ships within 2 days via

£90.35/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 1 1/2"
Bore Size 1 1/2"
Bore Type Finished Bore
Chain Number 50
Chain Pitch 5/8"
Chain Size #50
Construction Solid
Construction Type Solid
Finished Bore Size 1 1/2"
For Chain Number 50
For Chain Pitch 5/8"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 2 1/2"
Hub Outside Dia. 2 1/2"
Individually Packaged Yes
Keyway Size 3/8" x 3/16"
Length Through Bore 1"
Length Thru Bore 1"
Material Steel
Max. Bore Size 1 3/4"
Min. Bore Size 1 1/2"
No. Of Teeth 16
Number Of Chain Rows 1
Number Of Teeth 16
Outside Dia. 3.517"
Pitch 5/8"
Pitch Dia. 3.2036"
Pitch Diameter 3.204"
Screw Size 3/8"-16 x 3/8"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 3/8"-16
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.343"
Storage Dimension Height 1.06"
Storage Dimension Length 3 5/8"
Storage Dimension Width 3 5/8"
Type Bored to Size Type BS

Product Details

Shipping Information

height 2.69
length 8.94
width 8.94
country of origin US
weight 0.468000
