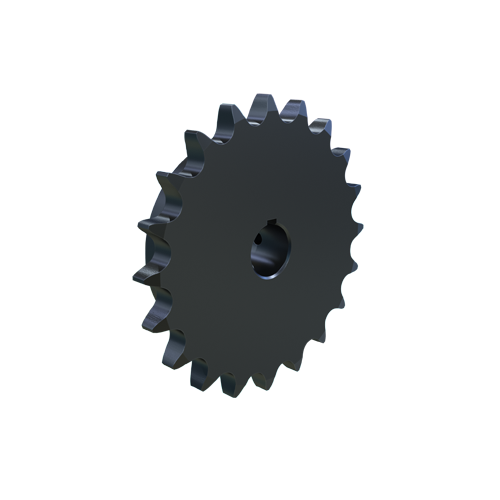

MARTIN SPROCKET 50BS20HT 3/4 Roller Chain Sprocket, 0.750 Inch Bore, 4.321 Inch Outside Dia. Steel, Hardened

Item: AJ9HJQ
Model: 50BS20HT 3/4
26 In Stock

Ships within 2 days via

£137.84/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bore Diameter 3/4"
Bore Size 3/4"
Bore Type Finished Bore
Chain Number 50
Chain Pitch 5/8"
Chain Size #50
Construction Solid
Construction Type Solid
Finished Bore Size 3/4"
For Chain Number 50
For Chain Pitch 5/8"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 3"
Hub Outside Dia. 3"
Individually Packaged Yes
Keyway Size 3/16" x 3/32"
Length Through Bore 1"
Length Thru Bore 1"
Material Steel
Max. Bore Size 2"
Min. Bore Size 3/4"
Number Of Chain Rows 1
Number Of Teeth 20
Outside Dia. 4.321"
Pitch 5/8"
Pitch Dia. 3.9953"
Pitch Diameter 3.995"
Screw Size 1/4"-20 x 1/4"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 1/4"-20
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.343"
Storage Dimension Height 1.06"
Storage Dimension Length 4 5/8"
Storage Dimension Width 4 5/8"
Type Bored to Size Type BS

Product Details

Roller Chain Sprocket

Shipping Information

height 2.69
length 10.97
width 10.97
country of origin US
weight 0.985500
