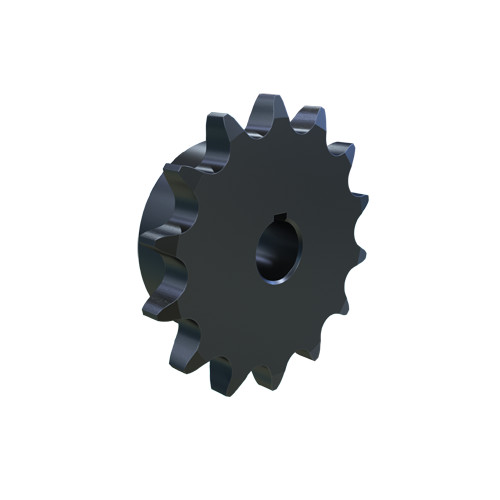

MARTIN SPROCKET 50BS14HT 5/8 Roller Chain Sprocket, 0.625 Inch Bore, 3.113 Inch Outside Dia. Steel, Hardened

Item: AJ9LJE
Model: 50BS14HT 5/8
13 In Stock

Ships within 2 days via

£81.32/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Diameter 5/8"
Bore Size 5/8"
Bore Type Finished Bore
Chain Number 50
Chain Pitch 5/8"
Chain Size #50
Construction Solid
Construction Type Solid
Finished Bore Size 5/8"
For Chain Number 50
For Chain Pitch 5/8"
Hardened Teeth 1
Hub Configuration B
Hub Diameter 2 1/8"
Hub Outside Dia. 2 1/8"
Individually Packaged Yes
Keyway Size 3/16" x 3/32"
Length Through Bore 1"
Length Thru Bore 1"
Material Steel
Max. Bore Size 1 7/16"
Min. Bore Size 5/8"
No. Of Teeth 14
Number Of Chain Rows 1
Number Of Teeth 14
Outside Dia. 3.113"
Pitch 5/8"
Pitch Dia. 2.8087"
Screw Size 1/4"-20 x 1/4"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 1/4"-20
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.343"
Storage Dimension Height 1.06"
Storage Dimension Length 3 5/8"
Storage Dimension Width 3 5/8"
Type Bored to Size Type BS

Product Details

Shipping Information

Height 2.69
Length 7.9
Width 7.9
Country Of Origin US
Weight 0.450000
