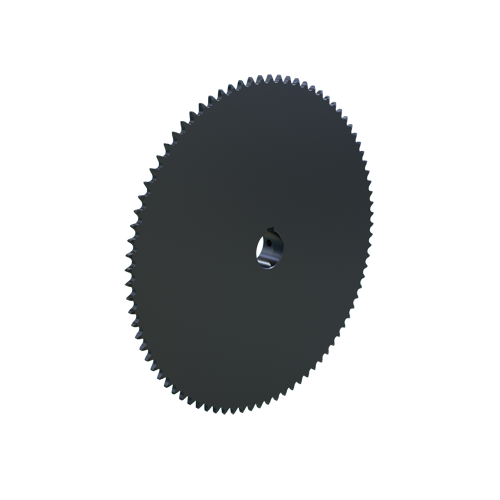

MARTIN SPROCKET 41BS84 1 1/2 Roller Chain Sprocket, 41 Chain No., 1.5 Inch Bore, 13.663 Inch Outside Dia. Steel
Item: BA6CWW
Model: 41BS84 1 1/2
In Stock
Get it by Wednesday, Apr 15
13.663"
1.5"
£166.98/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/2" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 3/16" , 1.188" |
| Material | Steel |
| No. Of Teeth | 84 |
|---|---|
| Number Of Chain Rows | 1 |
| Number Of Teeth | 84 |
| O.d. | 13.663" |
| Outside Dia. | 13.663" |
| Pitch | 1/2" |
| Pitch Dia. | 13.3721" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.19" |
| Storage Dimension Length | 13.663" |
| Storage Dimension Width | 13.663" |
| Type | Type B Bored to Size Single Strand Welded |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 3.02 |
|---|---|
| length | 34.7 |
| width | 34.7 |
| country of origin | US |
|---|---|
| weight | 5.080500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 41BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 24.01 | |
| B | 41BS9 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 24.01 | |
| C | 41BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 25.19 | |
| D | 41BS10 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 25.19 | |
| E | 41BS10 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 3/4" | 1/2" | 41 | 25.19 | |
| F | 41BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 26.12 | |
| G | 41BS11 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 26.12 |
