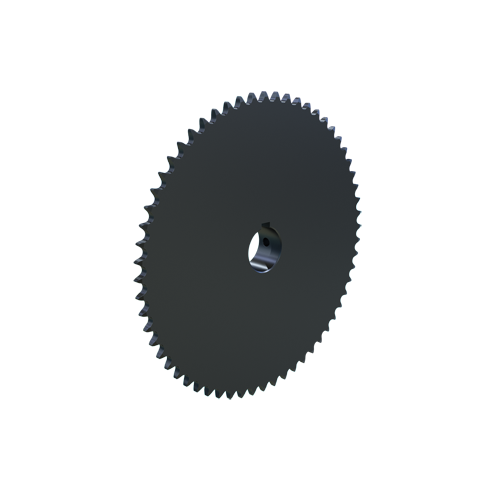

MARTIN SPROCKET 41BS60 1 7/16 Roller Chain Sprocket, 41 Chain No., 1.438 Inch Bore, 9.841 Inch Outside Dia. Steel
Item: AJ9CUH
Model: 41BS60 1 7/16
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
9.841"
1.438"
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 7/16" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/16" |
| Length Thru Bore | 1.063" |
| Material | Steel |
|---|---|
| No. Of Teeth | 60 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 9.841" |
| Pitch | 1/2" |
| Pitch Dia. | 9.5537" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 9.841" |
| Storage Dimension Width | 9.841" |
| Type | Type B Bored to Size Single Strand Welded |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.69 |
|---|---|
| length | 24.99 |
| width | 24.99 |
| country of origin | US |
|---|---|
| weight | 2.727000 |
