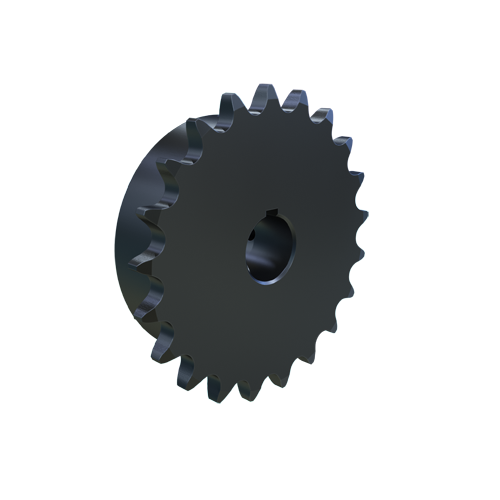

MARTIN SPROCKET 41BS21 3/4 Roller Chain Sprocket, 41 Chain No., 0.750 Inch Bore, 3.617 Inch Outside Dia. Steel
Item: AJ8WPK
Model: 41BS21 3/4
9 In Stock
Ships within 2 days via
3.617"
0.750"
£65.21/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 3/4" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 41 |
| Chain Pitch | 1/2" |
| Chain Size | #41 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 41 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 2 3/4" |
| Hub Outside Dia. | 2 7/8" |
| Individually Packaged | Yes |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
|---|---|
| No. Of Teeth | 21 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 21 |
| Outside Dia. | 3.617" |
| Pitch | 1/2" |
| Pitch Dia. | 3.3548" |
| Pitch Diameter | 3.355" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.227" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 4 5/16" |
| Storage Dimension Width | 4 5/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.69 |
|---|---|
| length | 9.19 |
| width | 9.19 |
| country of origin | US |
|---|---|
| weight | 0.801000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 41BS9 1/2 | 9 | 1.4619" | 1.674" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 24.01 | |
| B | 41BS9 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 24.01 | |
| C | 41BS10 1/2 | 10 | 1.618" | 1.839" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 25.19 | |
| D | 41BS10 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 25.19 | |
| E | 41BS10 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | 3/4" | 1/2" | 41 | 25.19 | |
| F | 41BS11 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | 1/2" | 1/2" | 41 | 26.12 | |
| G | 41BS11 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | 5/8" | 1/2" | 41 | 26.12 |
