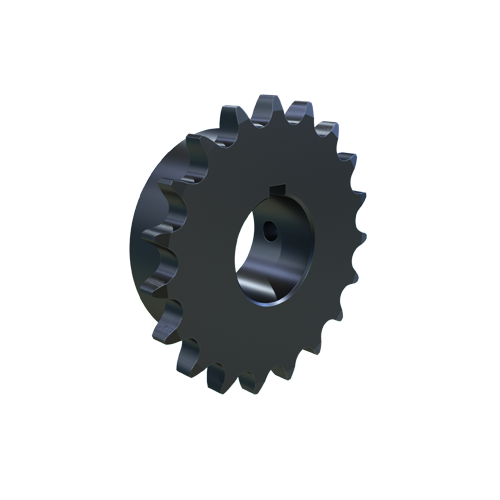

MARTIN SPROCKET 40BS19HT 1 3/16 Roller Chain Sprocket, 1.188 Inch Bore, 3.296 Inch Outside Dia. Steel, Hardened
Item: AJ9KCU
Model: 40BS19HT 1 3/16
18 In Stock
Ships within 2 days via
3.296"
1.188"
£85.99/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 3/16" |
|---|---|
| Bore Size | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 1/2" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1" |
| Length Thru Bore | 1" |
| Material | Steel |
|---|---|
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1 3/16" |
| No. Of Teeth | 19 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 19 |
| Outside Dia. | 3.296" |
| Pitch | 1/2" |
| Pitch Dia. | 3.0378" |
| Screw Size | 0.313"-18 x 0.313" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1.06" |
| Storage Dimension Length | 3 5/8" |
| Storage Dimension Width | 3 5/8" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.69 |
|---|---|
| length | 8.38 |
| width | 8.38 |
| country of origin | US |
|---|---|
| weight | 0.513000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Set Screw Location | Bore Size | For Chain Pitch | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 40BS9HT 5/8 | 9 | 1.4619" | 1.674" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 38.25 | |
| B | 40BS10HT 1/2 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (2) 90° Apart (No Keyway) | 1/2" | 1/2" | 40.42 | |
| C | 40BS10HT 5/8 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 40.42 | |
| D | 40BS10HT 3/4 | 10 | 1.618" | 1.839" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | 40.42 | |
| E | 40BS11HT 1/2 | 11 | 1.7747" | 2.003" | 7/8" | #10-24 | (1) Over Keyway And (1) At 90° | 1/2" | 1/2" | 42.60 | |
| F | 40BS11HT 5/8 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 5/8" | 1/2" | 42.60 | |
| G | 40BS11HT 3/4 | 11 | 1.7747" | 2.003" | 7/8" | 1/4"-20 | (1) Over Keyway And (1) At 90° | 3/4" | 1/2" | 42.60 |
