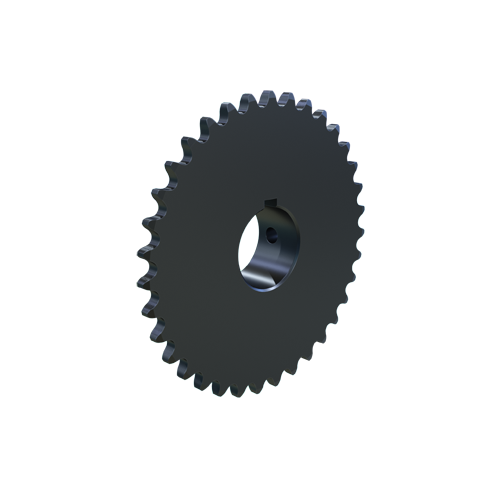

MARTIN SPROCKET 35BS35 1 3/16 Roller Chain Sprocket, Bore To Size, 1.188 Inch Bore, 4.392 Inch Outside Dia. Steel
Item: AJ9KKV
Model: 35BS35 1 3/16
26 In Stock
Ships within 2 days via
4.392"
1.188"
£95.32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 3/16" |
|---|---|
| Bore Size | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | Yes |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
|---|---|
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 35 |
| O.d. | 4.392" |
| Outside Dia. | 4.392" |
| Pitch | 3/8" |
| Pitch Dia. | 4.1834" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 4 3/4" |
| Storage Dimension Width | 4 3/4" |
| Type | Type B Bored to Size Single Strand Solid |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 2.38 |
|---|---|
| length | 11.15 |
| width | 11.15 |
| country of origin | US |
|---|---|
| weight | 0.598500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35BS9 3/8 | 9 | 1.0964" | 1.255" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 22.59 | |
| B | 35BS10 3/8 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 23.05 | |
| C | 35BS10 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | 23.05 | |
| D | 35BS10 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | - | 3/8" | 35 | 23.05 | |
| E | 35BS11 3/8 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 24.01 | |
| F | 35BS11 1/2 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | 24.01 | |
| G | 35BS11 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 3/8" | 35 | 24.01 |
