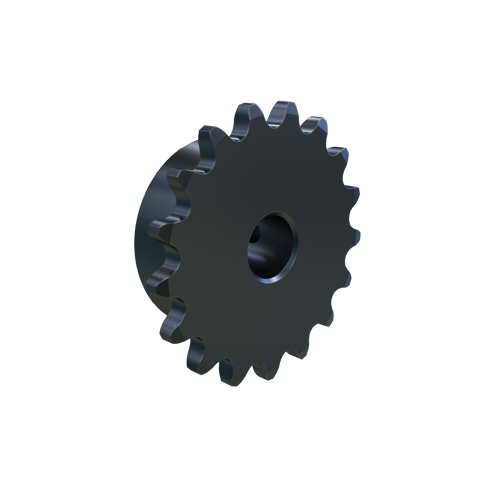

MARTIN SPROCKET 35BS17 1/2 Roller Chain Sprocket, Bore To Size, 0.5 Inch Bore, 2.231 Inch Outside Dia. Steel
Item: AJ8VTR
Model: 35BS17 1/2
18 In Stock
Ships within 2 days via
2.231"
0.5"
£34.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1/2" |
|---|---|
| Bore Size | 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Chain Size | #35 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 1.594" |
| Hub Outside Dia. | 1.5938" |
| Individually Packaged | Yes |
| Keyway Size | 1/8" x 1/16" |
| Length Through Bore | 3/4" |
| Length Thru Bore | 3/4" |
| Material | Steel |
|---|---|
| No. Of Teeth | 17 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| O.d. | 2.231" |
| Outside Dia. | 2.231" |
| Pitch | 3/8" |
| Pitch Dia. | 2.0408" |
| Pitch Diameter | 2.041" |
| Screw Size | 1/4"-20 x 1/4" |
| Set Screw Location | (2) 90° Apart (No Keyway) |
| Set Screw Size | #10-24 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 13/16" |
| Storage Dimension Length | 2 5/16" |
| Storage Dimension Width | 2 5/16" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 1.9 |
|---|---|
| length | 5.66 |
| width | 5.66 |
| country of origin | US |
|---|---|
| weight | 0.184500 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | Bore Size | For Chain Pitch | For Chain Number | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 35BS9 3/8 | 9 | 1.0964" | 1.255" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 22.59 | |
| B | 35BS10 3/8 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 23.05 | |
| C | 35BS10 1/2 | 10 | 1.2135" | 1.379" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | 23.05 | |
| D | 35BS10 5/8 | 10 | 1.2135" | 1.379" | 3/4" | 1/4"-20 | - | 3/8" | 35 | 23.05 | |
| E | 35BS11 3/8 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 3/8" | 3/8" | 35 | 24.01 | |
| F | 35BS11 1/2 | 11 | 1.331" | 1.502" | 3/4" | #10-24 | 1/2" | 3/8" | 35 | 24.01 | |
| G | 35BS11 5/8 | 11 | 1.331" | 1.502" | 3/4" | 1/4"-20 | 5/8" | 3/8" | 35 | 24.01 |
