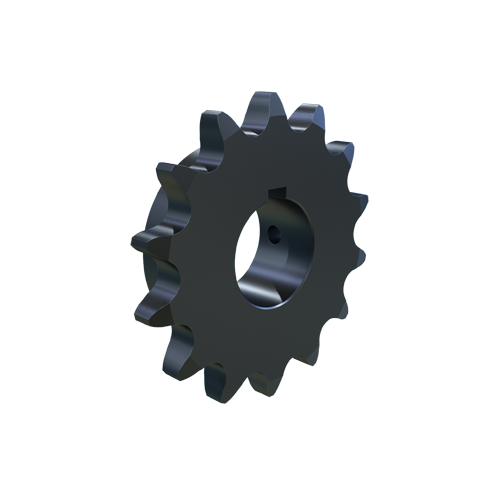

MARTIN SPROCKET 100BS14 2 3/16 Roller Chain Sprocket, Bore To Size, 2.188 Inch Bore, 6.227 Inch Outside Dia. Steel

Item: AJ9KJB
Model: 100BS14 2 3/16
13 In Stock

Ships within 2 days via

£286.28/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bore Diameter 2 3/16"
Bore Type Finished Bore
Chain Number 100
Chain Pitch 1 1/4"
Chain Size #100
Construction Solid
Construction Type Solid
Finished Bore Size 2 3/16"
For Chain Number 100
For Chain Pitch 1 1/4"
Hub Configuration B
Hub Diameter 4.188"
Hub Outside Dia. 4 3/16"
Individually Packaged No
Keyway Size 1/2" x 1/4"
Length Through Bore 1 5/8"
Length Thru Bore 1 5/8"
Material Steel
No. Of Teeth 14
Number Of Chain Rows 1
Number Of Teeth 14
O.d. 6.227"
Outside Dia. 6.227"
Pitch 1 1/4"
Pitch Dia. 5.6174"
Pitch Diameter 5.617"
Screw Size 1/2"-13 x 1/2"
Set Screw Location (1) Over Keyway And (1) At 90°
Set Screw Size 1/2"-13
Set Screw Thread Type Coarse
Single Strand Tooth Thickness 0.692"
Storage Dimension Height 1.63"
Storage Dimension Length 6.227"
Storage Dimension Width 6.227"
Type Bored to Size Type BS

Product Details

Roller Chain Sprocket

Shipping Information

height 2.54
length 15.82
width 15.82
country of origin US
weight 2.790000
