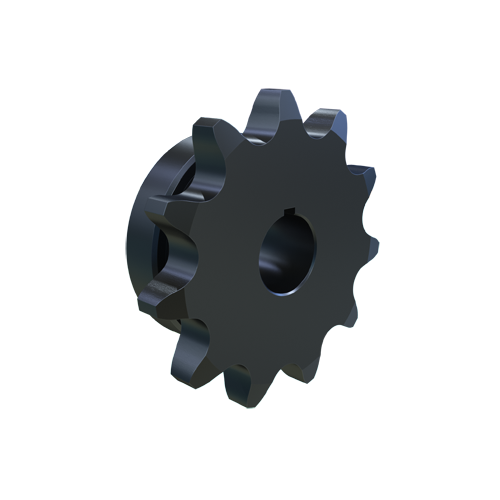

MARTIN SPROCKET 100BS11 1 1/4 Roller Chain Sprocket, Bore To Size, 1.250 Inch Bore, 5.007 Inch Outside Dia. Steel
Item: AJ9KBJ
Model: 100BS11 1 1/4
22 In Stock
Ships within 2 days via
5.007"
1.250"
£237.32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bore Diameter | 1 1/4" |
|---|---|
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | #100 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Diameter | 3.563" |
| Hub Outside Dia. | 3 9/16" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 7/8" |
| Length Thru Bore | 1 7/8" |
|---|---|
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 11 |
| O.d. | 5.007" |
| Outside Dia. | 5.007" |
| Pitch | 1 1/4" |
| Pitch Dia. | 4.4368" , 4.437" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 22/25" |
| Storage Dimension Length | 5.007" |
| Storage Dimension Width | 5.007" |
| Type | Bored to Size Type BS |
Product Details
Roller Chain Sprocket
Shipping Information
| height | 4.78 |
|---|---|
| length | 12.73 |
| width | 12.73 |
| country of origin | US |
|---|---|
| weight | 2.250000 |
Related Products
| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Bore Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 100BS9 1 7/16 | 9 | 3.6548" | 4.184" | 1 7/8" | 3/8"-16 | 100 | 1 1/4" | Finished Bore | 161.67 | |
| B | 100BS20 2 3/16 | 20 | 7.9906" | 8.642" | 2" | 1/2"-13 | 100 | 1 1/4" | Finished Bore | 282.71 | |
| C | 100BS11 2 | 11 | 4.4368" | 5.007" | 1 7/8" | 1/2"-13 | 100 | 1 1/4" | Finished Bore | 197.77 | |
| D | 100BS19 2 | 19 | 7.5944" | 8.241" | 2" | 1/2"-13 | 100 | 1 1/4" | Finished Bore | 270.78 | |
| B | 100BS19 2 15/16 | 19 | 7.5944" | 8.241" | 2" | 5/8"-11 | 100 | 1 1/4" | Finished Bore | 270.78 | |
| B | 100BS15 2 | 15 | 6.0122" | 6.631" | 1 3/4" | 1/2"-13 | 100 | 1 1/4" | Finished Bore | 258.09 | |
| B | 100BS25 2 7/16 | 25 | 9.9734" | 10.645" | 2" | 5/8"-11 | 100 | 1 1/4" | Finished Bore | 322.10 |
