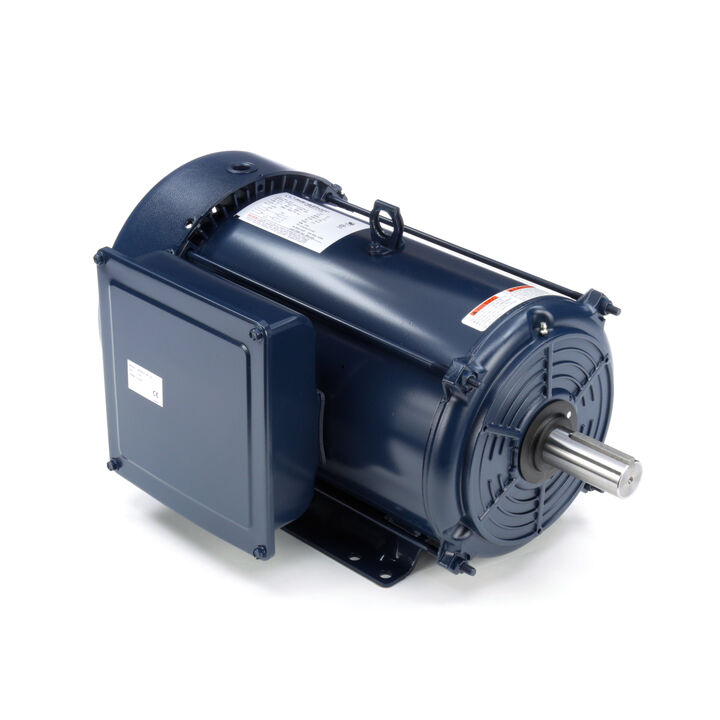

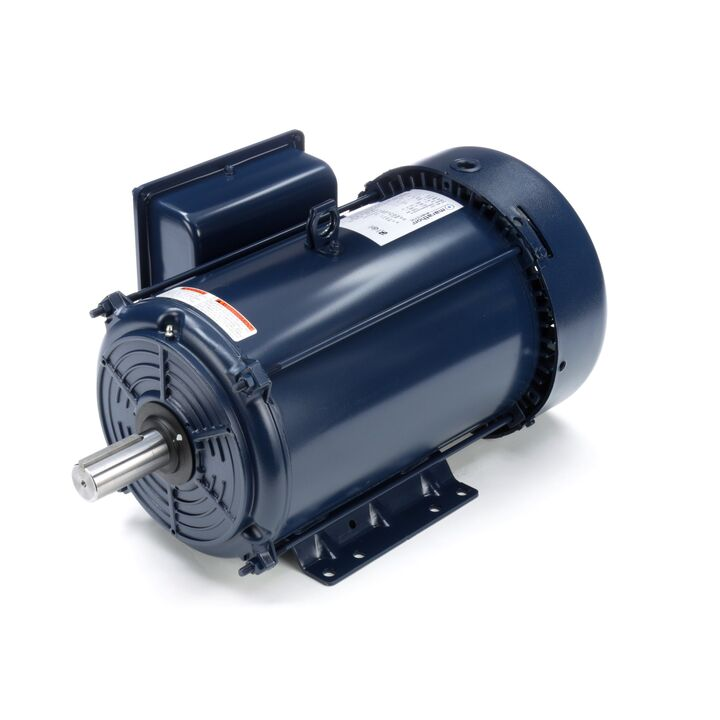

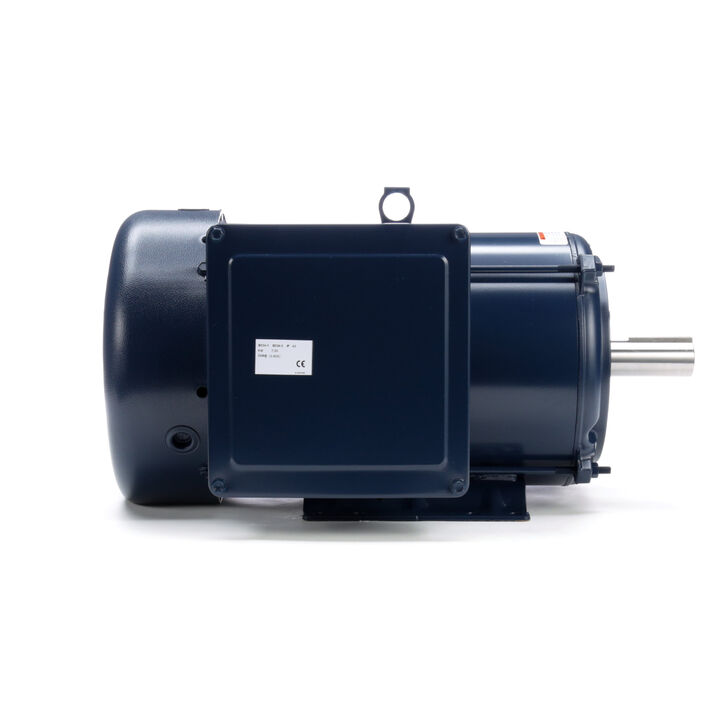

MARATHON MOTORS 215TBFW7027 I217 / 215TBFW7027DD General Purpose Motor, 10 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Item: AD4UUJ
Model: 215TBFW7027
In Stock
Get it by Friday, Apr 17
£3202.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 104°F |
|---|---|
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Standard |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 41.5A |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 17 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
|---|---|
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1759 RPM |
| Nema Design | L |
| No. Of Speeds | 1 |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 1 |
| Overall Length | 21 1/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 1/2" |
| Standard Logo | ce.png, csa.png, ul.png |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Motor Thermal Protection | None |
Product Details
Shipping Information
| Height | 35.56 |
|---|---|
| Length | 57.15 |
| Width | 42.7 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | US |
| Weight | 64.800000 |
Related Products
| Style | Model | Voltage | Nameplate Rpm | Full Load Amps | Motor Type | Service Factor | Hp | Frame | Ambient Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 184TBFW17044 | 115/208-230V AC | 1755 RPM | 28/15-14A | Capacitor Start/Run | 1 | 3 hp | 184T | 104°F | 1,144.65 | |
| B | 184TBFW7701 | 208-230V AC | 3530 RPM | 19.8-22.5A | Capacitor Start/Run | 1 | 5 hp | 184T | 104°F | 1,455.45 | |
| C | 184TBFW7726 | 208-230V AC | 1755 RPM | 19.5-21.5A | Capacitor Start/Run | 1.15 | 5 hp | 184T | 104°F | 1,485.32 | |
| D | 213TBFW7001 | 208-230V AC | 3465 RPM | 32-36A | Capacitor Start/Run | 1 | 7 1/2 hp | 213T | 104°F | 2,124.90 | |
| E | 213TBFW7026 | 208-230V AC | 1750 RPM | 22-24.5A | Capacitor Start/Run | 1 | 5 hp | 213T | 104°F | 1,529.01 | |
| F | 215TBFW7026 | 208-230V AC | 1740 RPM | 30-35A | Capacitor Start/Run | 1 | 7 1/2 hp | 215T | 104°F | 2,225.06 |
