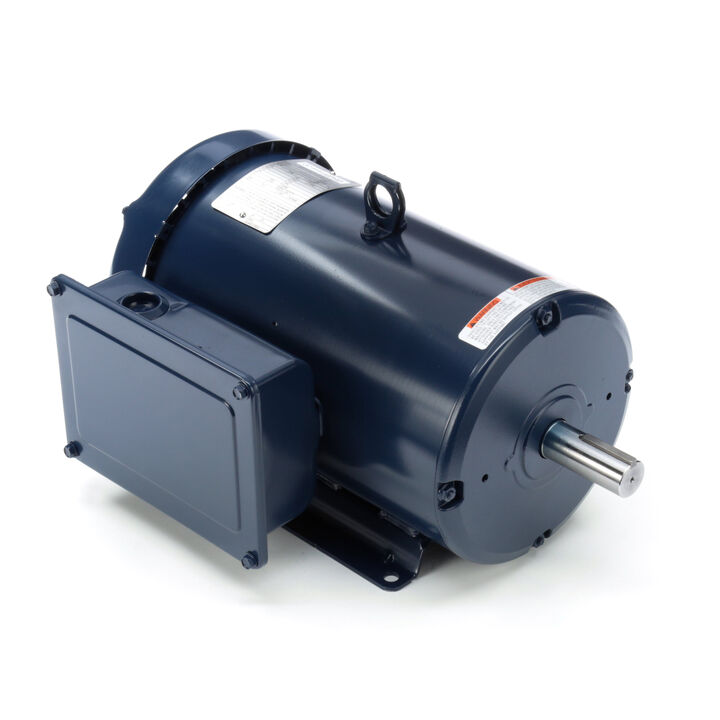

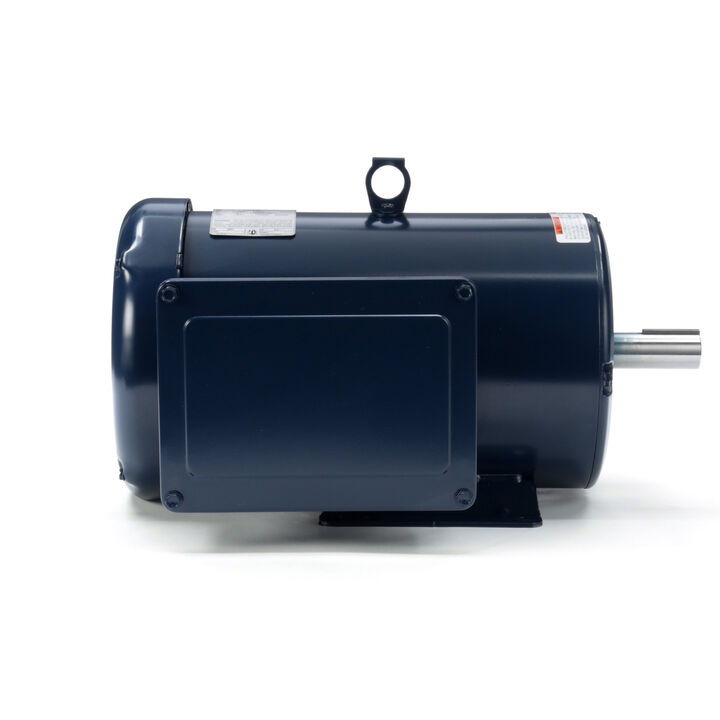

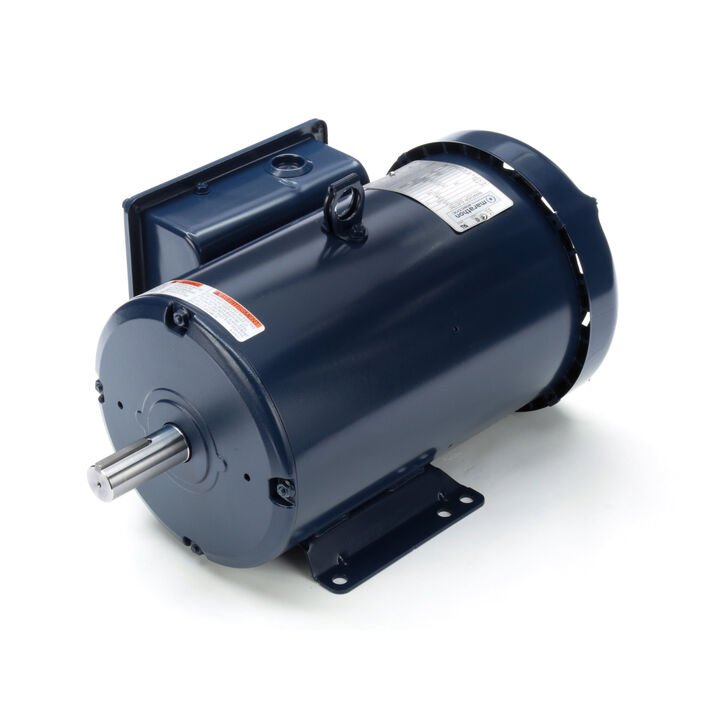

Item | General Purpose Motor |
Bearings | Ball |
Capacitor Required | No |
Duty | Continuous |
Efficiency Group | Standard |
Frame | 184T |
Frame Material | Rolled Steel |
Full Load Amps | 21.5-19.5 |
HP | 5 |
Hz | 60 |
Insulation Class | F |
Inverter Rated | No |
Length Less Shaft | 14.625" |
Max. Ambient Temp. | 40 Degrees C |
Motor Application | General Application |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
Motor Mounting Position | Horizontal |
Motor Mounting Type | Rigid Base |
Motor Shaft Design | Keyed |
Motor Shaft Rotation | CW/CCW |
Motor Thermal Protection | None |
Mounting | Base |
Nameplate RPM | 1755 |
Nominal Efficiency | 85.5% |
Number of Speeds | 1 |
Overall Length | 17.437" |
Phase | 1 |
Rotation | CW/CCW |
RPM Group | 1701-1800 |
RPM Range | 1701-1800 |
Service Factor | 1.15 |
Shaft Dia. | 1.125" |
Shaft Length | 2 13/16" |
Voltage | 208-230 |
Warranty | 1 Years |
Ship weight (kg) | 46.35 |
Ship height (cm) | 31.45 |
Ship length (cm) | 51.13 |
Ship width (cm) | 37.16 |
HS code | 8501406040 |
Country of Origin | US |
Product | Model | Motor Mounting Position | Frame | Full Load Amps | Motor Shaft Design | Motor Thermal Protection | Mounting | Nameplate RPM | NEMA Design | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
5KCR48WN6066 | All Angle | 56 | 10.6/5.3 | Keyed | None | Base | 1140 | - | £1,121.45 | ||
5KC32GN19 | Horizontal | 56 | 5.4/2.7 | Keyed | None | Base | 1725 | - | £427.24 | ||
5KC35MN43 | Horizontal | 56 | 6.0/3.0 | Keyed | None | Base | 1725 | - | £475.74 | ||
5KC35MN43X | Horizontal | 56 | 6.0/3.0 | Keyed | Auto | Base | 1725 | - | £511.03 | ||
5KC42GN0014 | Horizontal | 56 | 8.6/4.1-4.3 | Keyed | None | Base | 1725 | - | £547.76 | ||
5KC42GN0014X | Horizontal | 56 | 8.6/4.3 | Keyed | Auto | Base | 1725 | - | £614.20 | ||
5KC46PN0015X | Horizontal | 56 | 11.0/5.5 | Keyed | Auto | Base | 1725 | - | £705.94 |
