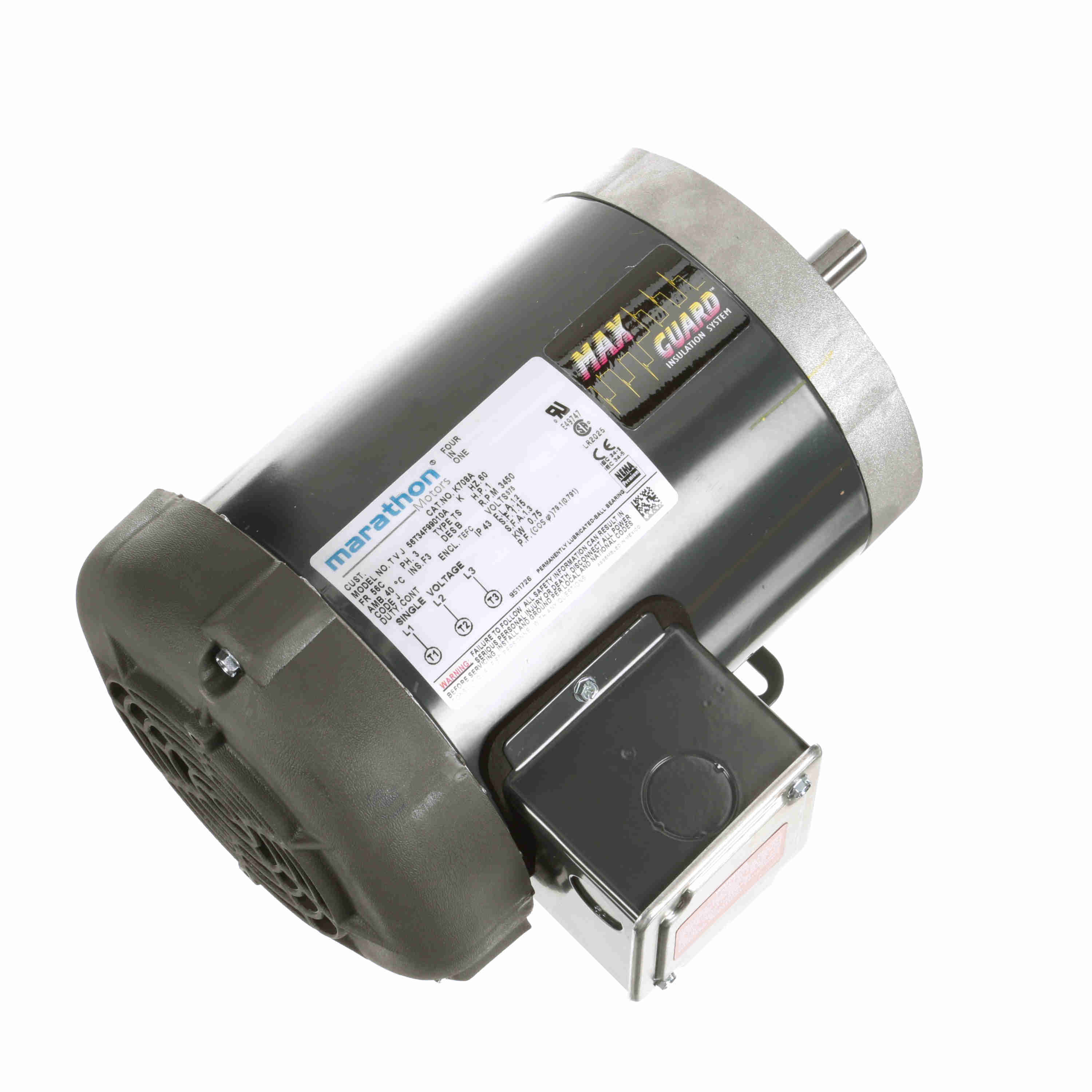

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Efficiency Group | NEMA Premium |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.2A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 9 3/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle , Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3450 RPM |
| Number Of Speeds | 1 |
| Overall Length | 11 13/16" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" , 2 1/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V AC |
| Warranty | 1 yr. |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 24 lbs. |
| Ship weight (kg) | 10.97 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| HS code | 8501524000 |
| Country of Origin | MX |
