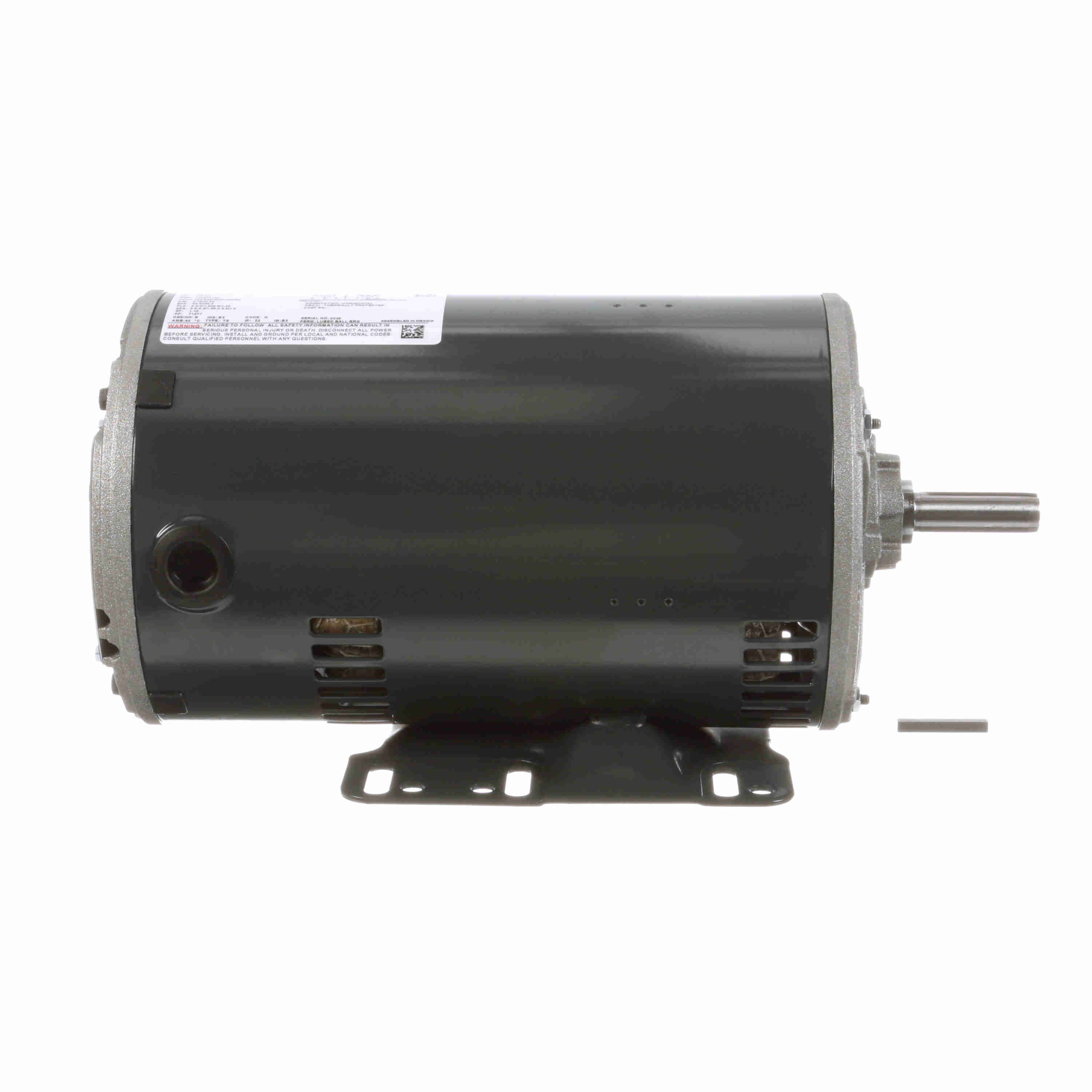

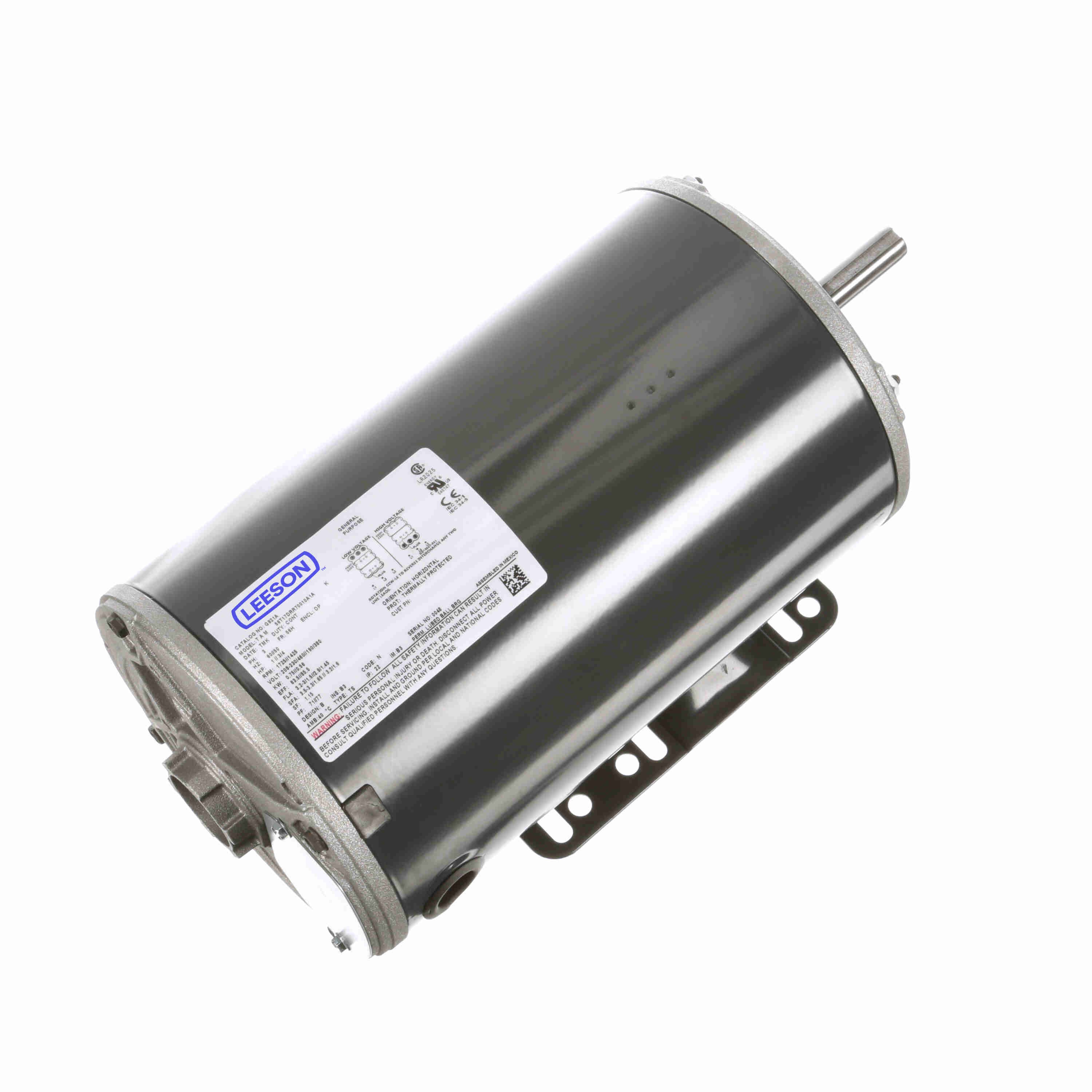

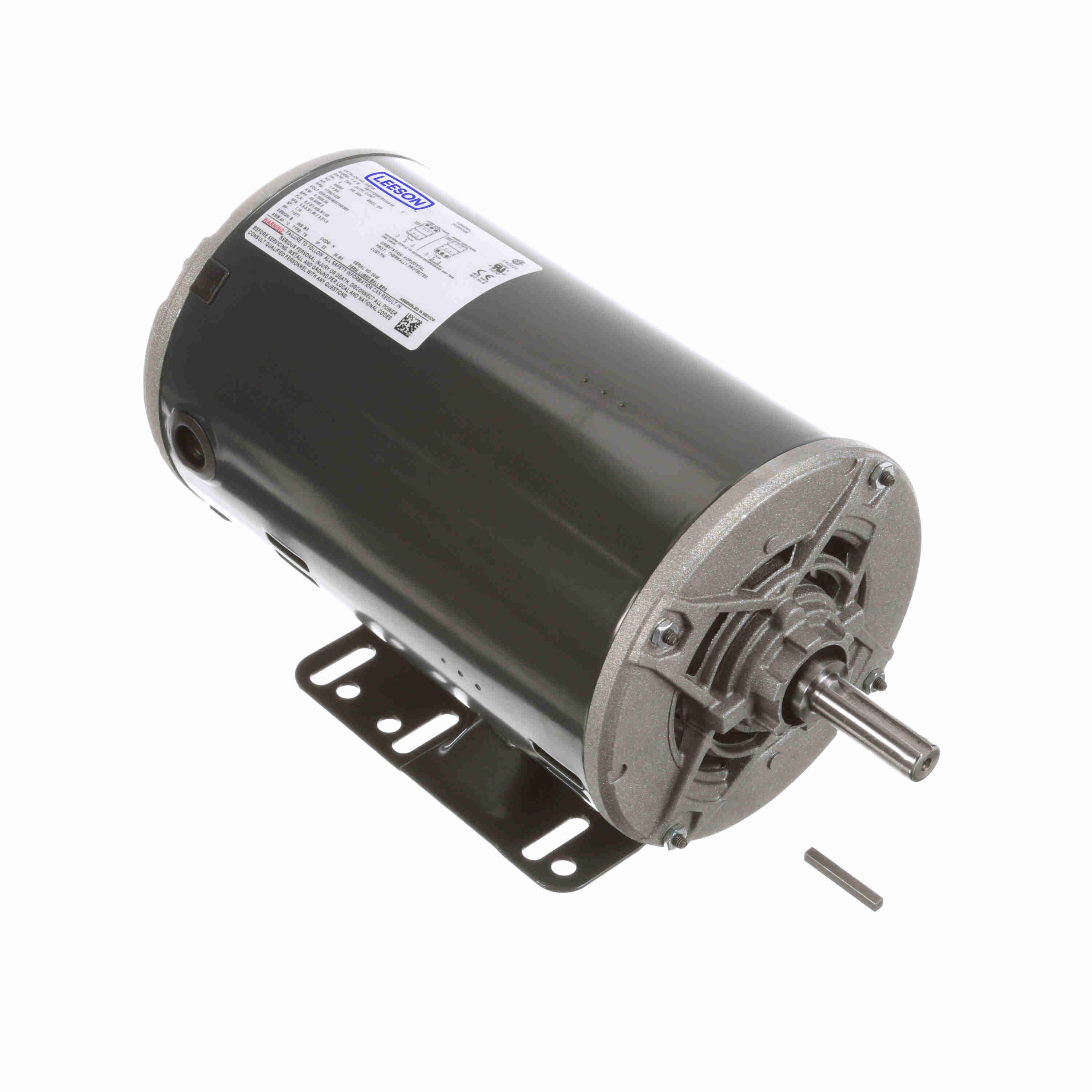

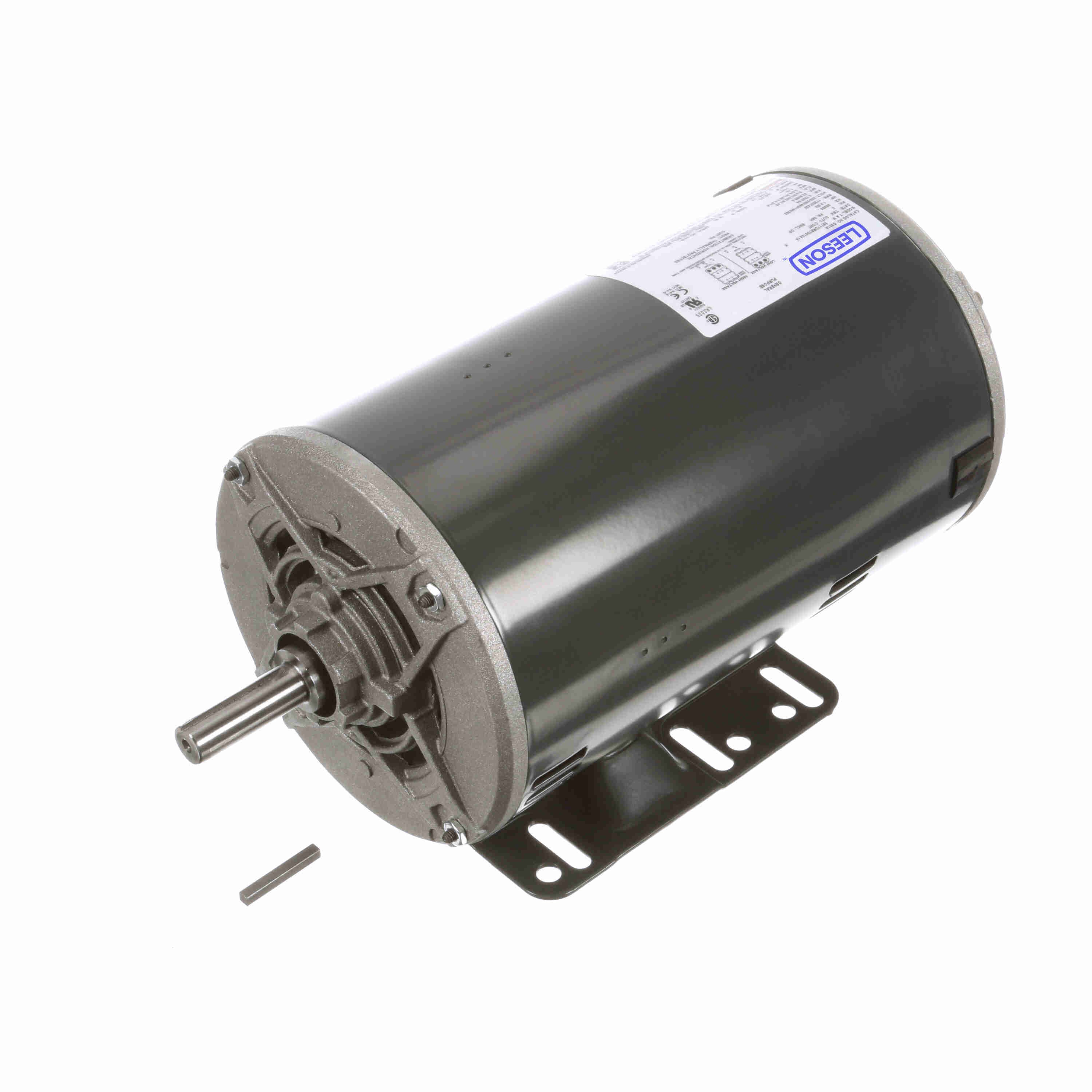

LEESON 056T17DRR70010A1 56T17DRR70010A1A / G921A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Item: CD3AXG
Model: 056T17DRR70010A1
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£712.76/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ambient Temp. | 40°C |
|---|---|
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 83.5% |
| Efficiency Group | Premium |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.2-3/1.5A |
| Full Load Amps @ 50hz | 3.2-3/1.5A |
| Hp | 1 hp |
| Hp @ 50hz | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 12 1/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 83.5% |
| Number Of Speeds | 1 |
| Overall Length | 14" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standard Logo | ce.png,csa.png,ul.png |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
Product Details
General Purpose Motor
Shipping Information
| height | 21.89 |
|---|---|
| length | 41.61 |
| width | 26.67 |
| hs code | 8501524000 |
|---|---|
| country of origin | MX |
| weight | 18.900000 |
