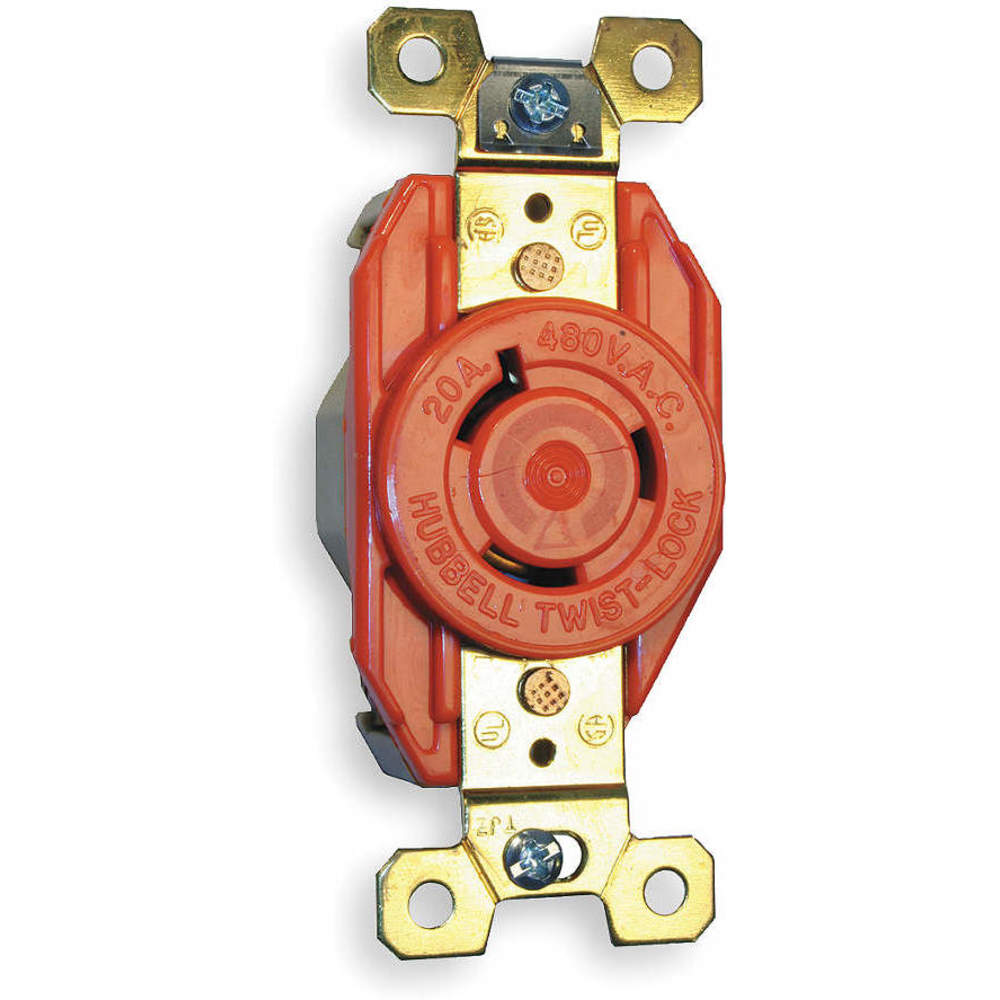

Item | Receptacle w/Isolated Ground |
Amps | 20 |
Color | Orange |
Connectivity | Back and Side Wired Screw Terminals |
Current Rating | 20 A |
Diameter B-C-E | Back and Side Wired Screw Terminals |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Industrial |
Height | 1.24" |
HP | 3 |
IP Rating | 20 |
Length | 3.28" |
Material | Nylon |
Max. HP | 5 |
Mounting | Screw Mounting |
Mounting Type | Flush Mount |
NEMA Configuration | L8-20R |
NEMA Rating | 8-20R |
Number of Poles | 2 |
Number of Wires | 3-Wire Grounding |
Operating Temp. | Maximum continuous 75 Deg. C and minimum-40 Deg. C without Impact |
Phase | Single Phase |
Type | Non-Shrouded |
UPC | 094705006375 |
Voltage | 480 VAC |
Voltage Rating | 480 V |
Wattage | 9600 W |
Width | 1.7" |
Wire Size | #16 AWG to #8 AWG |
Wire Type | Standard |
Ship weight (kg) | 0.11 |
Ship height (cm) | 8.64 |
Ship length (cm) | 24.89 |
Ship width (cm) | 11.18 |
HS code | 8536698000 |
Country of Origin | US |
Product | Model | HP | Amps | Color | Length | Material | Max. HP | NEMA Configuration | NEMA Rating | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
IG2420 | 3 | 20 | Orange | 3.28" | Nylon | 3 | L15-20R | 15-20R | £92.09 | ||
IG2510 | 2 | 20 | Orange | 3.28" | Nylon | 2 | L21-20R | 21-20R | £100.75 | ||
IG2710 | 2 | 30 | Orange | 3.28" | Nylon | 2 | L14-30R | L14-30R | £140.96 | ||
IG2720 | 3 | 30 | Orange | 3.28" | Nylon | 3 | L15-30R | L15-30R | £150.41 | ||
IG4550A | 1.5 | 15 | Orange | 3.29" | Thermoplastic | 1.5 | L6-15R | L6-15R | £77.51 | ||
IG2310 | 1 | 20 | Orange | 3.28" | Nylon | 1 | L5-20R | 5-20R | £69.16 | ||
IG2610 | 2 | 30 | Orange | 3.28" | Nylon | 2 | L5-30R | L5-30R | £102.28 |
