Item | Receptacle |
Amps | 20 |
Application Environment | Commercial Environments |
Color | White |
Connectivity | Side Wired |
Current Rating | 20 A |
Diameter B-C-E | Side Wired |
Dielectric Strength | Withstands 2,000V minimum |
Grade | Commercial |
Height | 3.28" |
HP | 1 |
Length | 1.32" |
Material | Nylon |
Max. HP | 1 |
Mounting Type | Flush |
NEMA Configuration | 5-20R |
NEMA Rating | 5-20R |
Number of Gangs | 1 |
Number of Poles | 2-Pole |
Number of Wires | 3-Wire |
Operating Temp. | Maximum continuous 75 Degree C and minimum -40 Degree C without Impact |
Outlet Type | Duplex |
Phase | Single Phase |
Power Indicator | No |

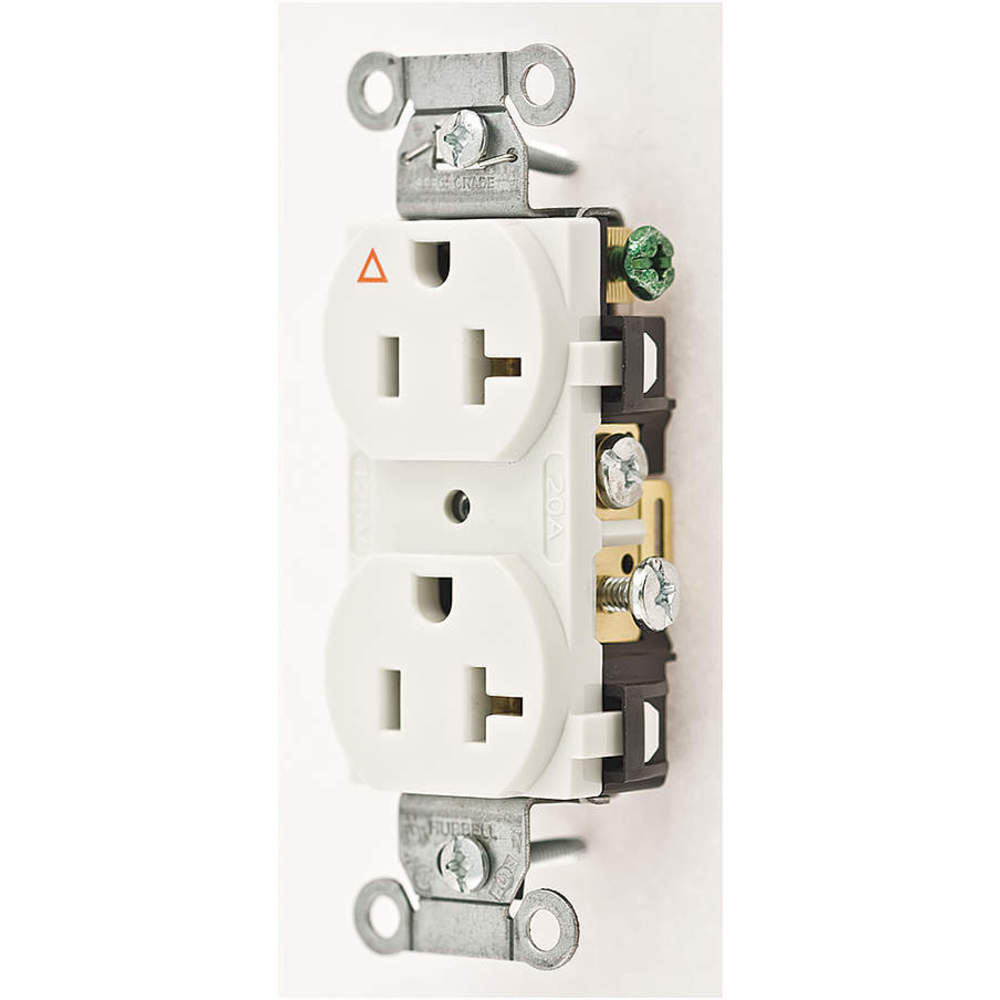

Prod. Description | Smooth Face Isolated Ground |
Surge Suppression | No |
Voltage | 125 VAC |
Voltage Rating | 125 V |
Wattage | 2500 W |
Weather Resistant | No |
Width | 1.06" |
Wire Size | #12 AWG to #10 AWG |
Wiring Method | Side |
Ship weight (kg) | 0.08 |
Ship height (cm) | 5.84 |
Ship length (cm) | 20.57 |
Ship width (cm) | 11.18 |
HS code | 8536698000 |
Country of Origin | CN |
Product | Model | NEMA Rating | Amps | Color | Width | Wire Size | Connectivity | Current Rating | HP | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
IG15CR | 5-15R | 15 | Orange | 0.83" | #14 AWG to #10 AWG | Side Wired Screw Terminals | 15 A | 1/2 | £15.06 | ||
IG15CRI | 5-15R | 15 | Ivory | 0.83" | #14 AWG to #10 AWG | Side Wired Screw Terminals | 15 A | 1/2 | £15.06 | ||
IG15CRWHI | 5-15R | 15 | White | 0.83" | #14 AWG to #10 AWG | Side Wired Screw Terminals | 15 A | 1/2 | £15.06 | ||
IG20CR | 5-20R | 20 | Orange | 1.06" | #12 AWG to #10 AWG | Side Wired | 20 A | 1 | £15.79 | ||
IG20CRGRY | 5-20R | 20 | Gray | 1.06" | #12 AWG to #10 AWG | Side Wired | 20 A | 1 | £15.28 | ||
IG20CRI | 5-20R | 20 | Ivory | 1.06" | #12 AWG to #10 AWG | Side Wired | 20 A | 1 | £15.24 | ||
IG20CRLA | 5-20R | 20 | Light Almond | 1.06" | #12 AWG to #10 AWG | Side Wired | 20 A | 1 | £15.28 |
